Purchase AD5444, In-stock AD5444 From SeekIC.
MFG:ADI D/C:09
Part Number: AD5444
MFG: ADI
D/C: 09
Description: The AD5444/AD5446* are CMOS 12-bit and 14-bit, current output, digital-to-analog converters (DACs). Operating from a single 2.5 V to 5....
- Table of contents:
AD5444
-
Suppliers
DataSheet
General Description
AD5444 General Description
The AD5444/AD5446* are CMOS 12-bit and 14-bit, current output, digital-to-analog converters (DACs). Operating from a single 2.5 V to 5.5 V power supply, these devices are suited for
AD5444 Maximum Ratings
| Resolution (Bits) | 12bit |
| DAC Update Rate | 2.7MSPS |
| DAC Settling Time | 40ns |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Ser,SPI |
| Output FSR | (-Vref),(Bip Vref),(Uni Vref),User Def. Range/Offset |
| Ref Int/Ext | Ext |
| Supply Vnom | Single(+2.5),Single(+2.7),Single(+3),Single(+3.3),Single(+5) |
| Pwr Diss | 50.5W |
| Package | SOP |

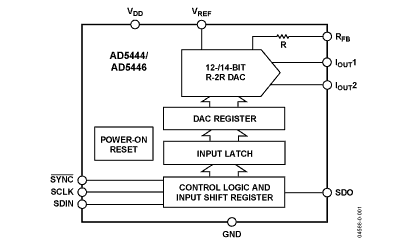

AD5444 Connection Diagram
AD5444
PDF/DataSheet Download
- Datasheet: AD5444
- File Size: 881474 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
