Purchase AD6640, In-stock AD6640 From SeekIC.
MFG:ADI D/C:09
Part Number: AD6640
MFG: ADI
D/C: 09
Description: The AD6640 is a high speed, high performance, low power, monolithic 12-bit analog-to-digital converter...
- Table of contents:
AD6640
-
Suppliers
DataSheet
General Description
AD6640 General Description
The AD6640 is a high speed, high performance, low power, monolithic 12-bit analog-to-digital converter. All necessary functions, including track-and-hold (T/H) and reference are
included on-chip to provide a complete conversion solution. The AD6640 runs on a single +5 V supply and provides CMOScompatible digital outputs at 65 MSPS.
Specifically designed to address the needs of multichannel, multimode receivers, the AD6640 maintains 80 dB spuriousfree dynamic range (SFDR) over a bandwidth of 25 MHz. Noise performance is also exceptional; typical signal-to-noise ratio is 68 dB.

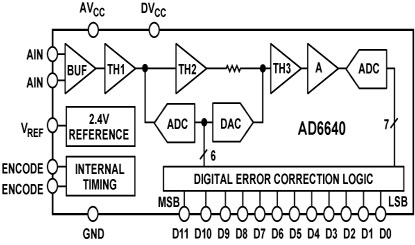

The AD6640 is built on Analog Devices' high speed complementary bipolar process (XFCB) and uses an innovative multipass architecture. Units are packaged in a 44-terminal Plastic Thin Quad Flatpack (TQFP) specified from 40°C to +85°C.
AD6640 Features
65 MSPS Minimum Sample Rate 80 dB Spurious-Free Dynamic Range IF-Sampling to 70 MHz 710 mW Power Dissipation Single +5 V Supply On-Chip T/H and Reference Twos Complement Output Format 3.3 V or 5 V CMOS-Compatible Output Levels
AD6640 Typical Application
Cellular/PCS Base Stations Multichannel, Multimode Receivers GPS Anti-Jamming Receivers Communications Receivers Phased Array Receivers
