Part Number: AD6644









Description: The AD6644 is a high-speed, high-performance, monolithic 14-bit analog-to-digital converter. All necessary functions, i...


Urgent Purchase

AD6644 General Description


The AD6644 is a high-speed, high-performance, monolithic 14-bit analog-to-digital converter. All necessary functions, including track-and-hold (T/H) and reference, are included onchip to provide a complete conversion solution. The AD6644 provides CMOS-compatible digital outputs. It is the third generation in a wideband ADC family, preceded by the AD9042 (12-bit 41 MSPS) and the AD6640 (12-bit 65 MSPS, IF sampling.)

AD6644 Maximum Ratings

Parameter
Min Max
Unit
ELECTRICAL
AVCC Voltage
DVCC Voltage
Analog Input Voltage
Analog Input Current
Digital Input Voltage
Digital Output Current

0 7
0 7
0 AVCC
25
0 AVCC
4
V
V
V
mA
V
mA
ENVIRONMENTAL2
Operating Temperature Range
(Ambient)
Maximum Junction Temperature
Lead Temperature (Soldering, 10 sec)
Storage Temperature Range (Ambient)
25 +85
150
300
65 +150
°C
°C
°C
°C

AD6644 Features

65 MSPS Guaranteed Sample Rate
40 MSPS Version Available
Sampling Jitter < 300 fs
100 dB Multitone SFDR
1.3 W Power Dissipation
Differential Analog Inputs
Digital Outputs
Two's Complement Format
3.3 V CMOS-Compatible
Data Ready for Output Latching

AD6644 Typical Application

Multichannel, Multimode Receivers
AMPS, IS-136, CDMA, GSM, Third Generation
Single Channel Digital Receivers
Antenna Array Processing
Communications Instrumentation
Radar, Infrared Imaging
Instrumentation

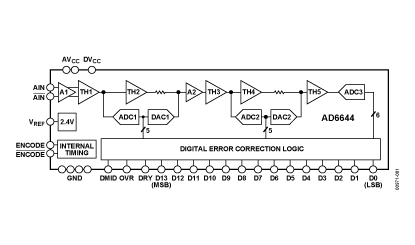

AD6644 Connection Diagram

AD6644 Connection Diagram

AD6644 datasheet

AD6644
PDF/DataSheet Download
