Description: The AD795 is a low noise, precision, FET input operational amplifier. It offers both the low voltage n...
- Table of contents:
AD795
-
Suppliers
DataSheet
General Description
AD795 General Description
The AD795 is a low noise, precision, FET input operational amplifier. It offers both the low voltage noise and low offset drif of a bipolar input op amp and the very low bias current of a FET-input device. The 10 14 common-mode impedance insures that input bias current is essentially independent of common-mode voltage and supply voltage variations.
The AD795 has both excellent dc performance and a guaran- teed and tested maximum input voltage noise. It features 1 pA maximum input bias current and 250 V maximum offset volt age, along with low supply current of 1.5 mA max.Furthermore, the AD795 features a guaranteed low input noise of 2.5 V p-p (0.1 Hz to 10 Hz) and a 11 nV/Hz max noise level at 10 kHz. The AD795 has a fully specified and tested input offset voltage drift of only 3 V/°C max.
The AD795 is useful for many high input impedance, low noise applications. The AD795J and AD795K are rated over the commercial temperature range of 0°C to +70°C.The AD795 is available in 8-pin plastic mini-DIP and 8-pi surface mount (SOIC) packages.
AD795 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±18 V
Internal Power Dissipation2 (@ TA = +25°C)
SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 500 mW
8-Pin Mini-DIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 750 mW
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . .±VS
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . .. . Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . .. +VS and VS
Storage Temperature Range (N, R) . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range
AD795J/K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
Internal Power Dissipation2 (@ TA = +25°C)
SOIC Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 500 mW
8-Pin Mini-DIP Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 750 mW
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .. . .±VS
Output Short Circuit Duration . . . . . . . . . . . . . . . . . . . . . . .. . Indefinite
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . .. +VS and VS
Storage Temperature Range (N, R) . . . . . . . . . . . . 65°C to +125°C
Operating Temperature Range
AD795J/K . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
AD795 Features
Low Power Replacement for Burr-Brown
OPA-111, OPA-121 Op Amps
Low Noise
2.5 V p-p max, 0.1 Hz to 10 Hz
11 nV/Hz max at 10 kHz
0.6 fA/Hz at 1 kHz
High DC Accuracy
250 V max Offset Voltage
3 V/C max Drift
1 pA max Input Bias Current
Low Power: 1.5 mA max Supply Current
Available in Low Cost Plastic Mini-DIP and Surface
Mount (SOIC) Packages
APPLICATIONS
Low Noise Photodiode Preamps
CT Scanners
Precision l-to-V Converters
OPA-111, OPA-121 Op Amps
Low Noise
2.5 V p-p max, 0.1 Hz to 10 Hz
11 nV/Hz max at 10 kHz
0.6 fA/Hz at 1 kHz
High DC Accuracy
250 V max Offset Voltage
3 V/C max Drift
1 pA max Input Bias Current
Low Power: 1.5 mA max Supply Current
Available in Low Cost Plastic Mini-DIP and Surface
Mount (SOIC) Packages
APPLICATIONS
Low Noise Photodiode Preamps
CT Scanners
Precision l-to-V Converters

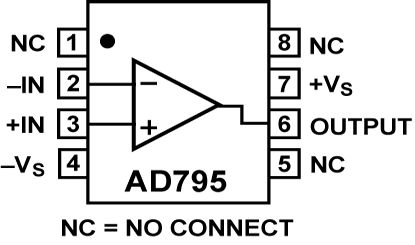

AD795 Connection Diagram
AD795
PDF/DataSheet Download
- Datasheet: AD795
- File Size: 339592 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
