General Description
AD8016 General Description
The AD8016 high output current dual amplifier is designed for the line drive interface in Digital Subscriber Line systems such as ADSL, HDSL2, and proprietary xDSL systems. The drivers are capable, in full-bias operation, of providing 24.4 dBm output power into low resistance loads, enough to power a 20.4 dBm line, including hybrid insertion loss.
AD8016 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . ..... . . . .. .26.4 V
Internal Power Dissipation
PSOP3 Package2 . . . . . . . . . . . . . . . . . . . . . . .... . . . ...... . .2.2 W
Batwing Package3 . . . . . . . . . . . . . . . . . . . . . . . . ......... . . .1.4 W
EPAD Package4 . . . . . . . . . . . . . . . . . . . . . . . . . .............. . .1.4 W
Input Voltage (Common-Mode) . . . . . . . . . . . . . . . . ........ . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . ....... . . .±VS
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . .Observe Power Derating Curves
Storage Temperature Range . . . . . . . . . . . .. .65°C to +125°C
Operating Temperature Range . . . . . . . . . . ... .40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . ..... . .300°C
Internal Power Dissipation
PSOP3 Package2 . . . . . . . . . . . . . . . . . . . . . . .... . . . ...... . .2.2 W
Batwing Package3 . . . . . . . . . . . . . . . . . . . . . . . . ......... . . .1.4 W
EPAD Package4 . . . . . . . . . . . . . . . . . . . . . . . . . .............. . .1.4 W
Input Voltage (Common-Mode) . . . . . . . . . . . . . . . . ........ . . .±VS
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . ....... . . .±VS
Output Short Circuit Duration
. . . . . . . . . . . . . . . . . . . .Observe Power Derating Curves
Storage Temperature Range . . . . . . . . . . . .. .65°C to +125°C
Operating Temperature Range . . . . . . . . . . ... .40°C to +85°C
Lead Temperature Range (Soldering 10 sec) . . . . . . ..... . .300°C
AD8016 Features
Low Power Operation
High Output Voltage and Current Drive
Low Single Tone Distortion
MTPR = 75 dBc, 26 kHz to 1.1 MHz, ZLINE = 100
High Speed

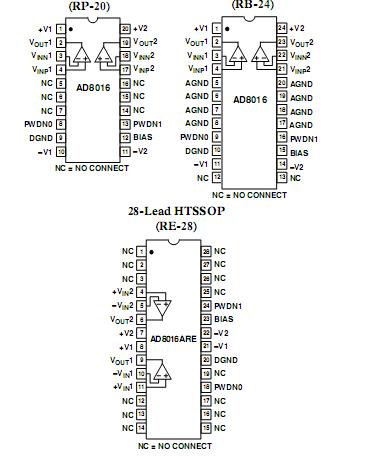

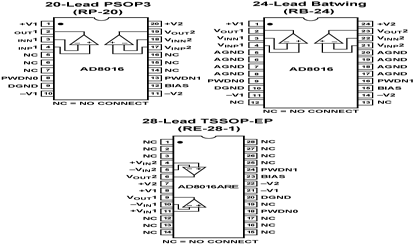

AD8016 Connection Diagram
AD8016
