Purchase AD8091, In-stock AD8091 From SeekIC.
MFG:ADI D/C:09
Part Number: AD8091
MFG: ADI
D/C: 09
Description: The AD8091 (single) and AD8092 (dual) are low-cost, voltage feedback, high-speed amplifiers designed t...
- Table of contents:
AD8091
-
Suppliers
DataSheet
General Description
AD8091 General Description
The AD8091 (single) and AD8092 (dual) are low-cost, voltage feedback, high-speed amplifiers designed to operate on +3 V, +5 V,or ±5 V supplies. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.
Despite their low cost, the AD8091/AD8092 provide excellent overall performance and versatility. The output voltage swing extends to within 25 mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery. This makes the AD8091/AD8092 useful for video electronics, such as cameras,video switchers, or any high-speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.
AD8091 Maximum Ratings
Supply Voltage..............................................................12.6 V
Power Dissipation................................................See Figure 1
Common-Mode Input Voltage........................................... ±VS
Differential Input Voltage .............................................±2.5 V
Output Short Circuit Duration..............................See Figure 1
Storage Temperature Range .......................65°C to +125°C
Operating Temperature Range...................... 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) ................300°C
Power Dissipation................................................See Figure 1
Common-Mode Input Voltage........................................... ±VS
Differential Input Voltage .............................................±2.5 V
Output Short Circuit Duration..............................See Figure 1
Storage Temperature Range .......................65°C to +125°C
Operating Temperature Range...................... 40°C to +85°C
Lead Temperature Range (Soldering 10 sec) ................300°C
AD8091 Features
Low-Cost Single (AD8091), Dual (AD8092)
Voltage Feedback Architecture
Fully Specified at +3 V, +5 V, and 5 V Supplies
Single-Supply Operation
Output Swings to within 25 mV of Either Rail
Input Voltage Range:0.2 V to +4 V; VS = +5 V
High-Speed and Fast Settling on +5 V
110 MHz 3 dB Bandwidth (G = +1)
145 V/s Slew Rate
50 ns Settling Time to 0.1%
Good Video Specifications (G = +2)
Gain Flatness of 0.1 dB to 20 MHz; RL = 150
0.03% Differential Gain Error; RL = 1 k
0.03° Differential Phase Error; RL = 1 k
Low Distortion
80 dBc Total Harmonic @ 1 MHz; RL = 100
Outstanding Load Drive Capability
Drives 45 mA, 0.5 V from Supply Rails
Drives 50 pF Capacitive Load (G = +1)
Low Power of 4.4 mA/Amplifier
Voltage Feedback Architecture
Fully Specified at +3 V, +5 V, and 5 V Supplies
Single-Supply Operation
Output Swings to within 25 mV of Either Rail
Input Voltage Range:0.2 V to +4 V; VS = +5 V
High-Speed and Fast Settling on +5 V
110 MHz 3 dB Bandwidth (G = +1)
145 V/s Slew Rate
50 ns Settling Time to 0.1%
Good Video Specifications (G = +2)
Gain Flatness of 0.1 dB to 20 MHz; RL = 150
0.03% Differential Gain Error; RL = 1 k
0.03° Differential Phase Error; RL = 1 k
Low Distortion
80 dBc Total Harmonic @ 1 MHz; RL = 100
Outstanding Load Drive Capability
Drives 45 mA, 0.5 V from Supply Rails
Drives 50 pF Capacitive Load (G = +1)
Low Power of 4.4 mA/Amplifier
AD8091 Typical Application
Coaxial Cable Driver
Active Filters
Video Switchers
Professional Cameras
CCD Imaging Systems
CD/DVD
Active Filters
Video Switchers
Professional Cameras
CCD Imaging Systems
CD/DVD

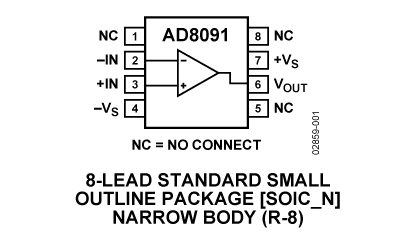

AD8091 Connection Diagram
AD8091
