Part Number: AD9708



MFG: ADI



D/C: 09

Description: The AD9708 is the 8-bit resolution member of the TxDAC™ series of high performance, low power CMOS digital-to-analog converters (D...


Urgent Purchase

AD9708 General Description


The AD9708 is the 8-bit resolution member of the TxDAC™ series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC™ family, which consists of pin

AD9708 Maximum Ratings

Resolution (Bits) 8bit
DAC Update Rate 125MSPS
DAC Settling Time 35ns
# DAC Outputs 1
DAC Type Current Out
DAC Input Format Par
Output FSR (Iout x Rload),Adj(Uni 2mA to Uni 20mA),User Def. Range/Offset
Ref Int/Ext Int/Ext
Supply Vnom Single(+3),Single(+3.3),Single(+5)
Pwr Diss 175mW
Package SOIC,SOP

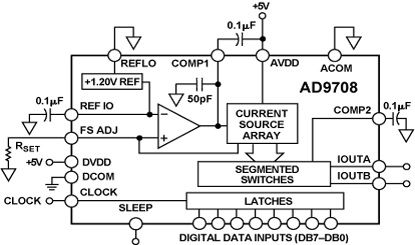

AD9708 Connection Diagram

AD9708 Connection Diagram
