Part Number: AD9712B
Description: The AD9712B and AD9713B D/A converters are replacements for the AD9712 and AD9713 units which offer im...
- Table of contents:
AD9712B
-
Suppliers
DataSheet
General Description
AD9712B General Description
The AD9712B and AD9713B D/A converters are replacements for the AD9712 and AD9713 units which offer improved ac and dc performance. Like their predecessors, they are 12-bit, high speed digital-to-analog converters fabricated in an advanced oxide isolated bipolar process. The AD9712B is an ECLcompatible evice featuring update rates of 100 MSPS minimum; he TTL-compatible AD9713B will update at 80 MSPS inimum.
Designed for direct digital synthesis, waveform reconstruction, nd high resolution imaging applications, both devices feature ow glitch impulse of 28 pV-s and fast settling times of 27 ns. oth units are characterized for dynamic performance and have xcellent harmonic suppression.
The AD9712B and AD9713B are available in 28-pin plastic IPs and PLCCs, with an operating temperature range of 25°C to +85°C. Both are also available for extended temperature anges of 55°C to +125°C in cerdips and 28-pin LCC ackages.
AD9712B Maximum Ratings
Positive Supply Voltage (+VS) (AD9713B Only) . . . . . . . +6 V
Negative Supply Voltage (VS) . . . . . . . . . . . . . . . . . . . 7 V
Analog-to-Digital Ground Voltage Differential . . . . . . . .0.5 V
Digital Input Voltages (D1D12, LATCH ENABLE)
AD9712B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to VS
AD9713B . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to +VS
Internal Reference Output Current . . . . . . . . . . . . . .500 mA
Control Amplifier Input Voltage Range . . . . . . . . 0 V to 4 V
Control Amplifier Output Current . . . . . . . . . . . . . . .±2.5 mA
Reference Input Voltage Range (VREF) . . . . . . . . 0 V to VS
Analog Output Current . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Operating Temperature Range
AD9712B/AD9713BAN/AP/BN/BP . . . . . . . . .25°C to +85°C
AD9712B/AD9713BSE/SQ/TE/TQ . . . . . . . 55°C to +125°C
Maximum Junction Temperature2
AD9712B/AD9713BAN/AP/BN/BP . . . . . . . . . . . . . . . +150°C
AD9712B/AD9713BSE/SQ/TE/TQ . . . . . . . . . . . . . . .+175°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . +300°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
NOTES
1Absolute maximum ratings are limiting values to be applied individually, and
beyond which the serviceability of the circuit may be impaired. Functional
operability is not necessarily implied. Exposure to absolute maximum rating
conditions for an extended period of time may affect device reliability.
2Typical thermal impedances with parts soldered in place: 28-pin plastic DIP:
qJA = 37°C/W, qJC = 10°C/W; 28-pin PLCC: qJA = 44°C/W, qJC = 14°C/W;
Cerdip: qJA = 32°C/W, qJC = 10°C/W; LCC: qJA = 41°C/W, qJC = 13°C/W. No air
flow.
Negative Supply Voltage (VS) . . . . . . . . . . . . . . . . . . . 7 V
Analog-to-Digital Ground Voltage Differential . . . . . . . .0.5 V
Digital Input Voltages (D1D12, LATCH ENABLE)
AD9712B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0 V to VS
AD9713B . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to +VS
Internal Reference Output Current . . . . . . . . . . . . . .500 mA
Control Amplifier Input Voltage Range . . . . . . . . 0 V to 4 V
Control Amplifier Output Current . . . . . . . . . . . . . . .±2.5 mA
Reference Input Voltage Range (VREF) . . . . . . . . 0 V to VS
Analog Output Current . . . . . . . . . . . . . . . . . . . . . . . 30 mA
Operating Temperature Range
AD9712B/AD9713BAN/AP/BN/BP . . . . . . . . .25°C to +85°C
AD9712B/AD9713BSE/SQ/TE/TQ . . . . . . . 55°C to +125°C
Maximum Junction Temperature2
AD9712B/AD9713BAN/AP/BN/BP . . . . . . . . . . . . . . . +150°C
AD9712B/AD9713BSE/SQ/TE/TQ . . . . . . . . . . . . . . .+175°C
Lead Temperature (Soldering, 10 sec) . . . . . . . . . . +300°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
NOTES
1Absolute maximum ratings are limiting values to be applied individually, and
beyond which the serviceability of the circuit may be impaired. Functional
operability is not necessarily implied. Exposure to absolute maximum rating
conditions for an extended period of time may affect device reliability.
2Typical thermal impedances with parts soldered in place: 28-pin plastic DIP:
qJA = 37°C/W, qJC = 10°C/W; 28-pin PLCC: qJA = 44°C/W, qJC = 14°C/W;
Cerdip: qJA = 32°C/W, qJC = 10°C/W; LCC: qJA = 41°C/W, qJC = 13°C/W. No air
flow.
AD9712B Features
· 100 MSPS Update Rate
· ECL/TTL Compatibility
· SFDR @ 1 MHz: 70 dBc
· Low Glitch Impulse: 28 pV-s
· Fast Settling: 27 ns
· Low Power: 725 mW
· 1/2 LSB DNL (B Grade)
· 40 MHz Multiplying Bandwidth
· ECL/TTL Compatibility
· SFDR @ 1 MHz: 70 dBc
· Low Glitch Impulse: 28 pV-s
· Fast Settling: 27 ns
· Low Power: 725 mW
· 1/2 LSB DNL (B Grade)
· 40 MHz Multiplying Bandwidth
AD9712B Typical Application
· ATE
· Signal Reconstruction
· Arbitrary Waveform Generators
· Digital Synthesizers
· Signal Generators
· Signal Reconstruction
· Arbitrary Waveform Generators
· Digital Synthesizers
· Signal Generators

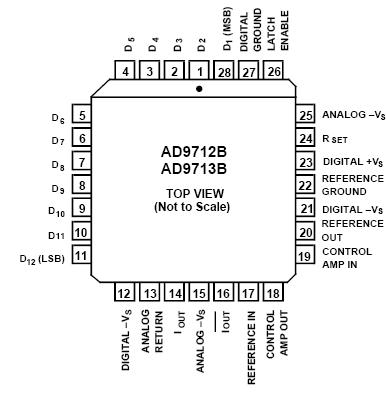

AD9712B Connection Diagram
AD9712B
