Features: High Performance Member of Pin CompatibleTxDAC Product FamilyExcellent Spurious-Free Dynamic Range PerformanSFDR to Nyquist:83 dBc @ 5 MHz Output80 dBc @ 10 MHz Output73 dBc @ 20 MHz OutputSNR @ 5 MHz Output, 125 MSPS: 77 dBTwos Complement or Straight Binary Data FormatDifferential Curre...
AD9744: Features: High Performance Member of Pin CompatibleTxDAC Product FamilyExcellent Spurious-Free Dynamic Range PerformanSFDR to Nyquist:83 dBc @ 5 MHz Output80 dBc @ 10 MHz Output73 dBc @ 20 MHz Outpu...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Resolution (Bits) | 14bit |
DAC Update Rate | 210MSPS |
DAC Settling Time | 11ns |
# DAC Outputs | 1 |
DAC Type | Current Out |
DAC Input Format | Par |
Output FSR | (Iout x Rload),Adj(Uni 2mA to Uni 20mA),User Def. Range/Offset |
Ref Int/Ext | Int/Ext |
Supply Vnom | Single(+3.3) |
Pwr Diss (Max) | 145mW |
Package | CSP,SOIC,SOP |
*Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum ratings for extended periods may effect device reliability.

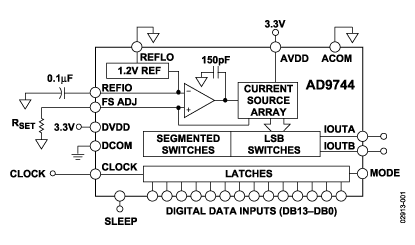

The AD9744 is a 14-bit resolution, wideband, third generation member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC family, consisting of pin compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD9744 offers exceptional ac and dc performance
while supporting update rates up to 165 MSPS.
The AD9744's low power dissipation makes it well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 60 mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 15 mW. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance. Edge-triggered input latches and a 1.2 V temperature compen-
sated band gap reference have been integrated to provide a complete monolithic DAC solution. The digital inputs support 3V CMOS logic families.
