Part Number: AD9755
MFG: ADI
D/C: 09
Description: The AD9755 is a dual muxed port, ultra high-speed, single channel,14-bit CMOS DAC. It integrates a high-quality 14-bit TxDAC core, a vo...
- Table of contents:
AD9755
-
Suppliers
DataSheet
General Description
AD9755 General Description
The AD9755 is a dual muxed port, ultra high-speed, single channel,14-bit CMOS DAC. It integrates a high-quality 14-bit TxDAC core, a voltage reference, and digital interface circuitry into a
AD9755 Maximum Ratings
| Resolution (Bits) | 14bit |
| DAC Update Rate | 300MSPS |
| DAC Settling Time | 11ns |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Par |
| Output FSR | (Iout x Rload),Adj(Uni 2mA to Uni 20mA),User Def. Range/Offset |
| Ref Int/Ext | Int/Ext |
| Supply Vnom | Single(+3.3) |
| Pwr Diss | 165mW |
| Package | QFP |

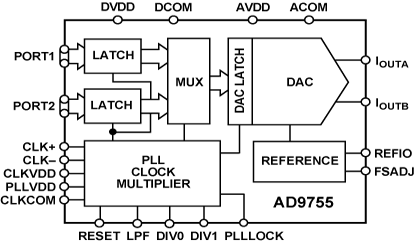

AD9755 Connection Diagram
AD9755
PDF/DataSheet Download
- Datasheet: AD9755
- File Size: 868352 KB
- Manufacturer: AD
- Click here to Download
