Purchase AD9762, In-stock AD9762 From SeekIC.
MFG:ADI D/C:09
Part Number: AD9762
MFG: ADI
D/C: 09
Description: The AD9762 is the 12-bit resolution member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs)....
- Table of contents:
AD9762
-
Suppliers
DataSheet
General Description
AD9762 General Description
The AD9762 is the 12-bit resolution member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC family which consists of pin compatible 8-, 10-,
AD9762 Maximum Ratings
| Resolution (Bits) | 12bit |
| DAC Update Rate | 125MSPS |
| DAC Settling Time | 35ns |
| # DAC Outputs | 1 |
| DAC Type | Current Out |
| DAC Input Format | Par |
| Output FSR | (Iout x Rload),Adj(Uni 2mA to Uni 20mA),User Def. Range/Offset |
| Ref Int/Ext | Int/Ext |
| Supply Vnom | Single(+5) |
| Pwr Diss | 160mW |
| Package | SOIC,SOP |

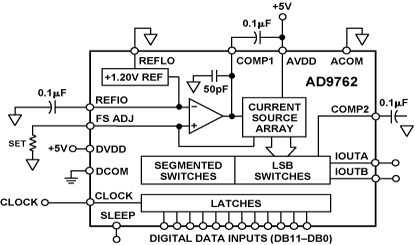

AD9762 Connection Diagram
AD9762
PDF/DataSheet Download
- Datasheet: AD9762
- File Size: 79770 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
