Part Number: AD9974





Package Cooled: new



Description: The AD9974 is a highly integrated dual-channel CCD signal processor for high speed digital video camera applications. Each channel is spec...


Urgent Purchase

AD9974 General Description


The AD9974 is a highly integrated dual-channel CCD signal processor for high speed digital video camera applications. Each channel is specified at pixel rates of up to 65 MHz. The AD9974 consists of a

AD9974 Maximum Ratings

Resolution (Bits) 14bit
Input Range (V p-p) 1V p-p
Sample Rate (MSPS) 65MSPS
Power Dissipation (mW) 300mW

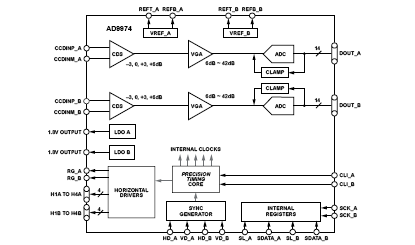

AD9974 Connection Diagram

AD9974 Connection Diagram
