ADD8506 General Description


The ADD8506 has 6-channel LCD gamma reference buffers  designed to drive column driver gamma inputs in line  inversion panels. Each buffer channel has an A/B input to  select between two gamma voltage curves. These buffer  channels drive the resistor ladders of LCD column drivers  for gamma correction. The ADD8506 outputs have high  slew rates and output drives that increase the stability of the  reference ladder, resulting in optimal gray scale and visual  performance.

The ADD8506 is specified over the −40°C to +105°C  temperature range. It is available in a 24-lead thin shrink small  outline (TSSOP), surface-mount, Pb-free package.

ADD8506 Maximum Ratings

Supply Voltage                                                    7 V
Input Voltage                                         GND to VCC
Storage Temperature Range        −65°C to +150°C
Junction Temperature Range        −65°C to +150°C
Lead Temperature (Soldering, 60 sec)           300°C

ADD8506 Features

Single-supply operation: 3.3 V to 6.5 V
Rail-to-rail input, rail-to-rail output
High output current: 380 mA
Low supply current: 3.9 mA
Stable with 1 nF loads
Wide temperature range: −40°C to +105°C
24-lead, Pb-free, TSSOP package

ADD8506 Typical Application

LCD line inversion gamma references
Car navigation panels
Personal media player panels

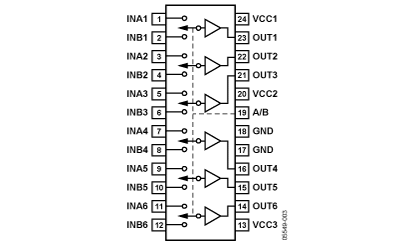

ADD8506 Connection Diagram

ADD8506 Connection Diagram
