Purchase ADD8706, In-stock ADD8706 From SeekIC.
MFG:ADI D/C:09
Part Number: ADD8706
MFG: ADI
D/C: 09
Description: The ADD8706 is a single-supply, 5-channel buffer with a separate VCOM amplifier that has been optimize...
- Table of contents:
ADD8706
-
Suppliers
DataSheet
General Description
ADD8706 General Description
The ADD8706 is a single-supply, 5-channel buffer with a separate VCOM amplifier that has been optimized for today's low cost TFT LCD notebook and monitor panels. The top and bottom channels swing to the top/bottom rails, respectively, and can be used as end-point gamma references. The middle channels are ideal for midpoint gamma references. The VCOM amplifier provides very high continuous and peak currents. All channels have excellent transient response as well as high slew rate and capacitive load drive capability. The ADD8706 is specified over the 40°C to +85°C temperature range. The ADD8706 is available in a 16-lead TSSOP package.
ADD8706 Maximum Ratings
| Parameter | Rating |
| Supply Voltage (VS) Input Voltage Differential Input Voltage Storage Temperature Range Operating Temperature Range Junction Temperature Range Lead Temperature Range ESD Tolerance (HBM) |
18 V −0.5 V to VS + 0.5 V VS 65°C to +150°C 40°C to +85°C 65°C to +150°C 300°C ±1500 V |
ADD8706 Features
Single-supply operation: 4.5 V to 16.5 V
Upper/lower buffers swing to VS/GND
Continuous output current: 35 mA
VCOM peak output current: 250 mA
Offset voltage: 15 mV
Slew rate: 6 V/µs
Unity gain stable with large capacitive loads
Supply current: 750 µA per amplifier
Upper/lower buffers swing to VS/GND
Continuous output current: 35 mA
VCOM peak output current: 250 mA
Offset voltage: 15 mV
Slew rate: 6 V/µs
Unity gain stable with large capacitive loads
Supply current: 750 µA per amplifier
ADD8706 Typical Application
TFT LCD monitor panels
TFT LCD notebook panels
Communications equipment
Portable instrumentation
Electronic games
ADC/DAC buffer
TFT LCD notebook panels
Communications equipment
Portable instrumentation
Electronic games
ADC/DAC buffer

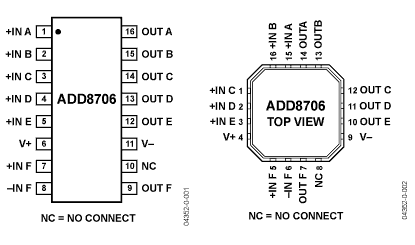

ADD8706 Connection Diagram
ADD8706
