Description: The ADF4153 is a fractional-N frequency synthesizer that implements local oscillators in the upconversion and downconve...
- Table of contents:
ADF4153
-
Suppliers
DataSheet
General Description
ADF4153 General Description
The ADF4153 is a fractional-N frequency synthesizer that implements local oscillators in the upconversion and downconversion sections of wireless receivers and transmitters. It consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider. There is a - based fractional interpolator to allow programmable fractional-N division. The INT, FRAC, and MOD registers define an overall N divider (N = (INT + (FRAC/MOD))). In addition, the 4-bit reference counter (R counter) allows selectable REFIN frequencies at the PFD input. A complete phase-locked loop (PLL) can be implemented if the synthesizer is used with an external loop filter and a voltage controlled oscillator (VCO).
Control of all on-chip registers is via a simple 3-wire interface. The device operate with a power supply ranging from 2.7 V to 3.3 V and can be powered down when not in use.
ADF4153 Maximum Ratings
VDD to GND −0.3 V to +4 V
VDD to VDD −0.3 V to +0.3 V
VP to GND −0.3 V to +5.8 V
VP to VDD −0.3 V to +5.8 V
Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V
REFIN, RFIN to GND −0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (B Version) −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Maximum Junction Temperature 150°C
TSSOP JA Thermal Impedance 150.4°C/W
LFCSP JA Thermal Impedance (Paddle Soldered) 122°C/W
LFCSP JA Thermal Impedance (Paddle Not Soldered) 216°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared 220°C
VDD to VDD −0.3 V to +0.3 V
VP to GND −0.3 V to +5.8 V
VP to VDD −0.3 V to +5.8 V
Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V
REFIN, RFIN to GND −0.3 V to VDD + 0.3 V
Operating Temperature Range
Industrial (B Version) −40°C to +85°C
Storage Temperature Range −65°C to +150°C
Maximum Junction Temperature 150°C
TSSOP JA Thermal Impedance 150.4°C/W
LFCSP JA Thermal Impedance (Paddle Soldered) 122°C/W
LFCSP JA Thermal Impedance (Paddle Not Soldered) 216°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared 220°C
ADF4153 Features
RF bandwidth 500 MHz to 4 GHz
2.7 V to 3.3 V power supply
Separate VP allows extended tuning voltage
Programmable dual-modulus prescaler 4/5, 8/9
Programmable charge pump currents
3-wire serial interface
Analog and digital lock detect
Power-down mode
Pin compatible with the ADF4110/ADF4111/ADF4112/ADF4113 and ADF4106
Programmable modulus on fractional-N synthesizer
Trade-off noise versus spurious performance
2.7 V to 3.3 V power supply
Separate VP allows extended tuning voltage
Programmable dual-modulus prescaler 4/5, 8/9
Programmable charge pump currents
3-wire serial interface
Analog and digital lock detect
Power-down mode
Pin compatible with the ADF4110/ADF4111/ADF4112/ADF4113 and ADF4106
Programmable modulus on fractional-N synthesizer
Trade-off noise versus spurious performance
ADF4153 Typical Application
CATV equipment
Base stations for mobile radio (GSM, PCS, DCS, CDMA, WCDMA)
Wireless handsets (GSM, PCS, DCS, CDMA, WCDMA)
Wireless LANs
Communications test equipment
Base stations for mobile radio (GSM, PCS, DCS, CDMA, WCDMA)
Wireless handsets (GSM, PCS, DCS, CDMA, WCDMA)
Wireless LANs
Communications test equipment

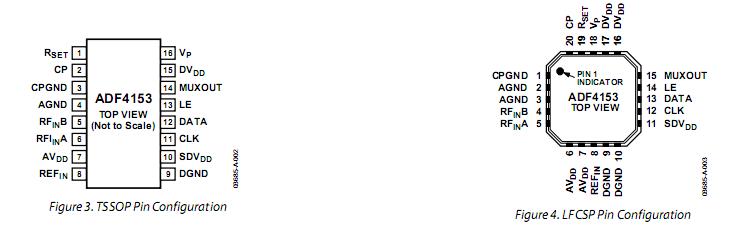

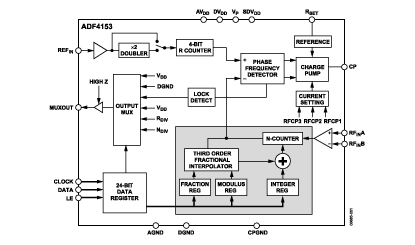

ADF4153 Connection Diagram
ADF4153
PDF/DataSheet Download
- Datasheet: ADF4153
- File Size: 363441 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
