Purchase ADF4360-4, In-stock ADF4360-4 From SeekIC.
MFG:ADI D/C:09
Part Number: ADF4360-4
MFG: ADI
D/C: 09
Description: The ADF4360-4 is a fully integrated integer-N synthesizer andvoltage controlled oscillator (VCO). The ADF4360-4 i...
- Table of contents:
ADF4360-4
-
Suppliers
DataSheet
General Description
ADF4360-4 General Description
The ADF4360-4 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-4 is designed for a center frequency of 1600 MHz. In addition, a divide-by-2 option is available, whereby the user gets an RF output of between 725 MHz and 875 MHz. Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.
ADF4360-4 Maximum Ratings
AVDD to GND* −0.3 V to +3.9 V
AVDD to DVDD −0.3 V to +0.3 V
VVCO to GND −0.3 V to +3.9 V
VVCO to AVDD −0.3 V to +0.3 V
Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V
REFIN to GND −0.3 V to VDD + 0.3 V
Operating Temperature Range
Maximum Junction Temperature 150°C
CSP JA Thermal Impedance
(Paddle Soldered) 50°C/W
(Paddle Not Soldered) 88°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared (15 sec) 220°C
AVDD to DVDD −0.3 V to +0.3 V
VVCO to GND −0.3 V to +3.9 V
VVCO to AVDD −0.3 V to +0.3 V
Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V
REFIN to GND −0.3 V to VDD + 0.3 V
Operating Temperature Range
Maximum Junction Temperature 150°C
CSP JA Thermal Impedance
(Paddle Soldered) 50°C/W
(Paddle Not Soldered) 88°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared (15 sec) 220°C
ADF4360-4 Features
Output frequency range: 1450 MHz to 1750 MHz
Output frequency range: 1450 MHz to 1750 MHz
Divide-by-2 output
3.0 V to 3.6 V power supply
1.8 V logic compatibility
Integer-N synthesizer
Programmable dual-modulus prescaler 8/9, 16/17, 32/33
Programmable output power level
3-wire serial interface
Analog and digital lock detect
Hardware and software power-down mode
Output frequency range: 1450 MHz to 1750 MHz
Divide-by-2 output
3.0 V to 3.6 V power supply
1.8 V logic compatibility
Integer-N synthesizer
Programmable dual-modulus prescaler 8/9, 16/17, 32/33
Programmable output power level
3-wire serial interface
Analog and digital lock detect
Hardware and software power-down mode
ADF4360-4 Typical Application
Wireless handsets (DECT, GSM, PCS, DCS, WCDMA)
Test equipment
Wireless LANs
CATV equipment
Test equipment
Wireless LANs
CATV equipment

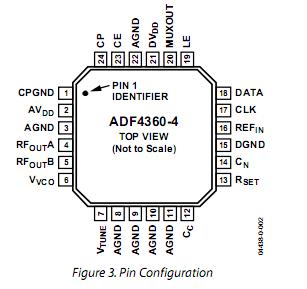

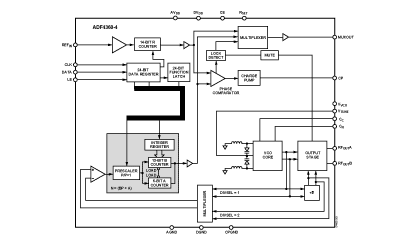

ADF4360-4 Connection Diagram
ADF4360-4
