ADF4360-6

Features:

Output frequency range: 1050 MHz to 1250 MHz
Divide-by-2 output
3.0 V to 3.6 V power supply
1.8 V logic compatibility
Integer-N synthesizer
Programmable dual-modulus prescaler 8/9, 16/17, 32/33
Programmable output power level
3-wire serial interface
Analog and digital lock detect
Hardware and software power-down mode




Application

Wireless handsets (DECT, GSM, PCS, DCS, WCDMA)
Test equipment
Wireless LANs
CATV equipment




Pinout






Specifications

AVDD to GND* −0.3 V to +3.9 V
AVDD to DVDD −0.3 V to +0.3 V
VVCO to GND −0.3 V to +3.9 V
VVCO to AVDD −0.3 V to +0.3 V
Digital I/O Voltage to GND −0.3 V to VDD + 0.3 V
Analog I/O Voltage to GND −0.3 V to VDD + 0.3 V
REFIN to GND −0.3 V to VDD + 0.3 V
Operating Temperature Range
Maximum Junction Temperature 150°C
CSP _JA Thermal Impedance
(Paddle Soldered)50°C/W
(Paddle Not Soldered)88°C/W
Lead Temperature, Soldering
Vapor Phase (60 sec) 215°C
Infrared (15 sec) 220°C






Description

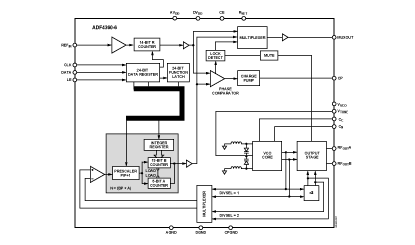

The ADF4360-6 is a fully integrated integer-N synthesizer and voltage controlled oscillator (VCO). The ADF4360-6 is designed for a center frequency of 1150 MHz. In addition, a divide-by-2 option is available, whereby the user receives an RF output of between 525 MHz and 625 MHz.

Control of all the on-chip registers is through a simple 3-wireinterface. ADF4360-6 operates with a power supply ranging from3.0 V to 3.6 V and can be powered down when not in use.
