Part Number: ADG3245
MFG: ADI
D/C: 09
Description: The ADG3245 is a 2.5 V or 3.3 V, 8-bit, 2-port digital switch. It is designed on Analog Devices' low voltage CMOS proce...
- Table of contents:
ADG3245
-
Suppliers
DataSheet
General Description
ADG3245 General Description
The ADG3245 is a 2.5 V or 3.3 V, 8-bit, 2-port digital switch. It is designed on Analog Devices' low voltage CMOS process, which provides low power dissipation yet gives high switching speed and very low on resistance, allowing inputs to be connected to outputs without additional propagation delay or generating additional ground bounce noise.
These digital switches allow bidirectional signals to be switched when ON. In the OFF condition, signal levels up to the supplies are blocked. This device is ideal for applications requiring level translation. When operated from a 3.3 V supply, level translation from 3.3 V inputs to 2.5 V outputs is allowed. Similarly, if the device is operated from a 2.5 V supply and 2.5 V inputs are applied, the device will translate the outputs to 1.8 V.
ADG3245 Maximum Ratings
VCC to GND . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to +4.6 V
Digital Inputs to GND . . . . . . . . . . . . . . . . . 0.5 V to +4.6 V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . .0.5 V to +4.6 V
DC Output Current . . . . . . . . . . . . . . . . . . . . . . . . . 120 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead Temperature, Soldering (10 seconds) . . . . . . . . 300°C
IR Reflow, Peak Temperature (<20 seconds) . . . . . . . 235°C
Digital Inputs to GND . . . . . . . . . . . . . . . . . 0.5 V to +4.6 V
DC Input Voltage . . . . . . . . . . . . . . . . . . . . .0.5 V to +4.6 V
DC Output Current . . . . . . . . . . . . . . . . . . . . . . . . . 120 mA
Operating Temperature Range
Industrial (B Version) . . . . . . . . . . . . . . . . 40°C to +85°C
Storage Temperature Range . . . . . . . . . . 65°C to +150°C
Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead Temperature, Soldering (10 seconds) . . . . . . . . 300°C
IR Reflow, Peak Temperature (<20 seconds) . . . . . . . 235°C
ADG3245 Features
225 ps Propagation Delay through the Switch
Data Rate 1.244 Gbps
2.5 V/3.3 V Supply Operation
Selectable Level Shifting/Translation
Level Translation
3.3 V to 2.5 V
3.3 V to 1.8 V
2.5 V to 1.8 V
Small Signal Bandwidth 610 MHz
20-Lead TSSOP and LFCSP Packages
Data Rate 1.244 Gbps
2.5 V/3.3 V Supply Operation
Selectable Level Shifting/Translation
Level Translation
3.3 V to 2.5 V
3.3 V to 1.8 V
2.5 V to 1.8 V
Small Signal Bandwidth 610 MHz
20-Lead TSSOP and LFCSP Packages
ADG3245 Typical Application
3.3 V to 1.8 V Voltage Translation
3.3 V to 2.5 V Voltage Translation
2.5 V to 1.8 V Voltage Translation
Bus Switching
Bus Isolation
Hot Swap
Hot Plug
Analog Switch Applications
3.3 V to 2.5 V Voltage Translation
2.5 V to 1.8 V Voltage Translation
Bus Switching
Bus Isolation
Hot Swap
Hot Plug
Analog Switch Applications

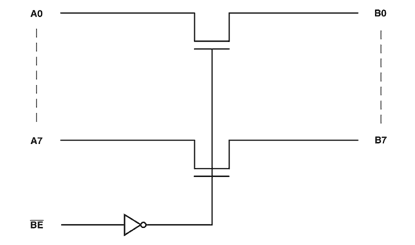

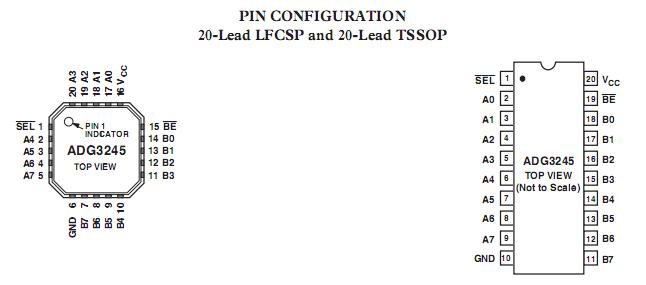

ADG3245 Connection Diagram
ADG3245
PDF/DataSheet Download
- Datasheet: ADG3245
- File Size: 340992 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
- ·ADG1204
- AD [Analog Devices]
- 2 pF Off Capacitance, 1 pC Charge Injection, +-15 V/12 V 4:1 iCMOS Multiplexer
- 464641 KB
- ·ADG1204YCP
- AD [Analog Devices]
- 2 pF Off Capacitance, 1 pC Charge Injection, +-15 V/12 V 4:1 iCMOS Multiplexer
- 464641 KB
- ·ADG1204YRU
- AD [Analog Devices]
- 2 pF Off Capacitance, 1 pC Charge Injection, +-15 V/12 V 4:1 iCMOS Multiplexer
- 464641 KB
- ·ADG1207YCPZ-REEL7
- AD
- Low Cost, Low Power 12-Bit Differential ADC Driver
- 494756 KB
- ·ADG1208YCPZ-REEL
- AD
- IC CMOS 8 】 12 Unbuffered Analog Switch Array With Dual/Single Supplies
- 456410 KB
- ·ADG1208YCPZ-REEL7
- AD
- IC CMOS 8 】 12 Unbuffered Analog Switch Array With Dual/Single Supplies
- 456410 KB
- ·ADG1209YCPZ-REEL
- AD
- Low Capacitance, 4-/8-Channel +-15 V/+12 V iCMOS Multiplexers
- 456410 KB
- ·ADG1209YCPZ-REEL7
- AD
- +3 V/+5 V/【5 V CMOS 4- and 8-Channel Analog Multiplexers
- 456410 KB
ADG3245 Relative Products
ADG3243BRJZ-REEL7
IC SW BUS CTRL 2.5/3.3V SOT23-8
-
ADG3243BRJ-REEL7
IC SW BUS CTRL 2.5/3.3V SOT23-8
ADG3243BRJ-REEL
IC SW BUS CTRL 2.5/3.3V SOT23-8
-
ADG3243BRJ-R2
IC SW BUS CTRL 2.5/3.3V SOT23-8
-
ADG3242BRJZ-REEL7
IC SW BUS CTRL 2.5/3.3V SOT23-8
-
ADG3242BRJ-REEL7
IC SW BUS CTRL 2.5/3.3V SOT23-8
