ADG433

The ADG431, ADG432 and ADG433 are monolithic CMOS devices comprising four independently selectable switches.  ADG431, ADG432 and ADG433  are designed on an enhanced LC²
MOS process which provides low power dissipation yet gives high switching speed and low on resistance. The on resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. Fast switching speed coupled with high signal bandwidth also make the parts suitable for video signal switching. CMOS construction ensures ultralow power dissipation making the parts ideally suited for portable and battery powered instruments.

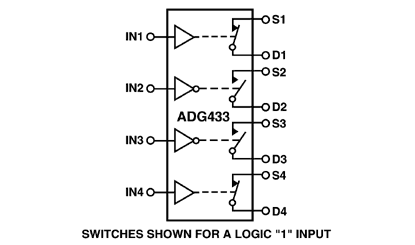

The ADG431, ADG432 and ADG433 contain four independent SPST switches. The  ADG431, ADG432 and ADG433  differ only in that the digital control logic is inverted. The product switches are turned on with a logic low on the appropriate control input, while a logic high is required for the product. The product has two switches with digital control logic similar to that of the product while the logic is inverted on the other two switches. Each switch conducts equally well in both directions when ON and has an input signal range which extends to the supplies. In the OFF condition, signal levels up to the supplies are blocked. All switches exhibit break before make switching action for use in multiplexer applications. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
