Purchase ADG602, In-stock ADG602 From SeekIC.
MFG:ADI D/C:09
Part Number: ADG602
MFG: ADI
D/C: 09
Description: The ADG601/ADG602 are monolithic, CMOS single-pole single-throw (SPST) switches with on resistance typically less than 2.5 . The low on...
- Table of contents:
ADG602
-
Suppliers
DataSheet
General Description
ADG602 General Description
The ADG601/ADG602 are monolithic, CMOS single-pole single-throw (SPST) switches with on resistance typically less than 2.5 . The low on-resistance flatness makes the ADG601/ADG602 ideally suited
ADG602 Maximum Ratings
| Switch Type | SPST |
| # Channels | 1 |
| Ron (Ohms) | 2Ohms |
| Id, Is (ON) | 10pA |
| Bandwidth | 180MHz |
| t ON | 80ns |
| t OFF | 145ns |
| Supply Voltage | Dual (±5V),Single (+5V) |

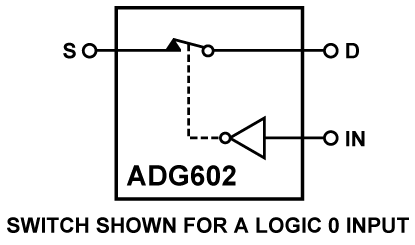

ADG602 Connection Diagram
ADG602
PDF/DataSheet Download
- Datasheet: ADG602
- File Size: 135739 KB
- Manufacturer: AD [Analog Devices]
- Click here to Download
