Description: The ADG821, ADG822, and ADG823 are monolithic CMOS SPST (single pole, single throw) switches. These sw...
- Table of contents:
ADG823
-
Suppliers
DataSheet
General Description
ADG823 General Description
The ADG821, ADG822, and ADG823 are monolithic CMOS SPST (single pole, single throw) switches. These switches are designed on an advanced submicron process that provides low power dissipation, yet gives high switching speed, low on resistance, and low leakage currents.
The ADG821, ADG822, and ADG823 are designed to operate from a single 1.8 V to 5.5 V supply, making them ideal for use in battery-powered instruments.
Each switch of the ADG821/ADG822/ADG823 conducts equally well in both directions when on. The ADG821, ADG822, and ADG823 contain two independent SPST switches. The ADG821and ADG822 differ only in that both switches are normally open and normally closed, respectively. In the ADG823, Switch 1 is normally open and Switch 2 is normally closed. The ADG823 exhibits break-before-make switching action.
The ADG821, ADG822, and ADG823 are available in an 8-lead MSOP package.
ADG823 Maximum Ratings
VDD to GND . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +7 V
Analog Inputs2. . . . . . . . . . . . . . . ..0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Digital Inputs2 . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . .400 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . .200 mA
Operating Temperature Range
Automotive . . . . . . . . . . . . . . . . . . . . . . ... 40°C to +125°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Junction Temperature (Tj max) . . . . . . . . . . . . . . . . . . 150°C
Package Power Dissipation . . . . . . . . . . . . . (Tj max TA)/JA
8-Lead MSOP Package
JAThermal Impedance . . . . . . . . . . . . . . . . . . . . . 206°C/W
JCThermal Impedance . . . . . . . . . . . . . . . . . . . . . . 44°C/W
Lead Temperature, Soldering (10 sec) . . . . . . . . . . . . . 300°C
IR Reflow, Peak Temperature (<20 sec) . . . . . . . . . . . . 235°C
NOTES
1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
2 Overvoltages at IN, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given.
Analog Inputs2. . . . . . . . . . . . . . . ..0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Digital Inputs2 . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V or
30 mA, Whichever Occurs First
Peak Current, S or D . . . . . . . . . . . . . . . . . . . . . . . . .400 mA
(Pulsed at 1 ms, 10% Duty Cycle max)
Continuous Current, S or D . . . . . . . . . . . . . . . . . . . .200 mA
Operating Temperature Range
Automotive . . . . . . . . . . . . . . . . . . . . . . ... 40°C to +125°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C
Junction Temperature (Tj max) . . . . . . . . . . . . . . . . . . 150°C
Package Power Dissipation . . . . . . . . . . . . . (Tj max TA)/JA
8-Lead MSOP Package
JAThermal Impedance . . . . . . . . . . . . . . . . . . . . . 206°C/W
JCThermal Impedance . . . . . . . . . . . . . . . . . . . . . . 44°C/W
Lead Temperature, Soldering (10 sec) . . . . . . . . . . . . . 300°C
IR Reflow, Peak Temperature (<20 sec) . . . . . . . . . . . . 235°C
NOTES
1 Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. Only one absolute maximum rating may be applied at any one time.
2 Overvoltages at IN, S, or D will be clamped by internal diodes. Current should be limited to the maximum ratings given.
ADG823 Features
` 0.8 Max On Resistance @125
` 0.28 Max On Resistance Flatness @125
` 1.8 V to 5.5 V Single Supply
` 200 mA Current Carrying Capability
` Automotive Temperature Range: 40 to +125
` Rail-to-Rail Operation
` 8-Lead MSOP Package
` 33 ns Switching Times
` Typical Power Consumption (<0.01 W)
` TTL/CMOS Compatible Inputs
` Pin Compatible with ADG721/722/723
` 0.28 Max On Resistance Flatness @125
` 1.8 V to 5.5 V Single Supply
` 200 mA Current Carrying Capability
` Automotive Temperature Range: 40 to +125
` Rail-to-Rail Operation
` 8-Lead MSOP Package
` 33 ns Switching Times
` Typical Power Consumption (<0.01 W)
` TTL/CMOS Compatible Inputs
` Pin Compatible with ADG721/722/723
ADG823 Typical Application
· Power Routing
· Battery-Powered Systems
· Communication Systems
· Data Acquisition Systems
· Audio and Video Signal Routing
· Cellular Phones
· Modems
· PCMCIA Cards
· Hard Drives
· Relay Replacement
· Battery-Powered Systems
· Communication Systems
· Data Acquisition Systems
· Audio and Video Signal Routing
· Cellular Phones
· Modems
· PCMCIA Cards
· Hard Drives
· Relay Replacement

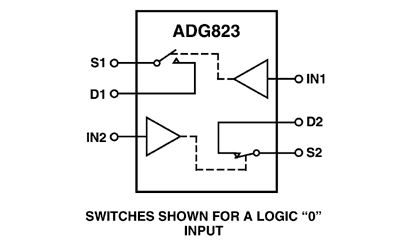

ADG823 Connection Diagram
ADG823
PDF/DataSheet Download
- Datasheet: ADG823
- File Size: 626515 KB
- Manufacturer: AD
- Click here to Download
- ·ADG1204
- AD [Analog Devices]
- 2 pF Off Capacitance, 1 pC Charge Injection, +-15 V/12 V 4:1 iCMOS Multiplexer
- 464641 KB
- ·ADG1204YCP
- AD [Analog Devices]
- 2 pF Off Capacitance, 1 pC Charge Injection, +-15 V/12 V 4:1 iCMOS Multiplexer
- 464641 KB
- ·ADG1204YRU
- AD [Analog Devices]
- 2 pF Off Capacitance, 1 pC Charge Injection, +-15 V/12 V 4:1 iCMOS Multiplexer
- 464641 KB
- ·ADG1207YCPZ-REEL7
- AD
- Low Cost, Low Power 12-Bit Differential ADC Driver
- 494756 KB
- ·ADG1208YCPZ-REEL
- AD
- IC CMOS 8 】 12 Unbuffered Analog Switch Array With Dual/Single Supplies
- 456410 KB
- ·ADG1208YCPZ-REEL7
- AD
- IC CMOS 8 】 12 Unbuffered Analog Switch Array With Dual/Single Supplies
- 456410 KB
- ·ADG1209YCPZ-REEL
- AD
- Low Capacitance, 4-/8-Channel +-15 V/+12 V iCMOS Multiplexers
- 456410 KB
- ·ADG1209YCPZ-REEL7
- AD
- +3 V/+5 V/【5 V CMOS 4- and 8-Channel Analog Multiplexers
- 456410 KB
