Purchase ADG859, In-stock ADG859 From SeekIC.
Part Number: ADG859
Description: The ADG859 is a monolithic, CMOS SPDT (single pole, double throw) switch that operates with a supply r...
- Table of contents:
ADG859
-
Suppliers
DataSheet
General Description
ADG859 General Description
The ADG859 is a monolithic, CMOS SPDT (single pole, double throw) switch that operates with a supply range of 1.8 V to 5.5 V. It is designed to offer low on resistance of 2.3 maxi-mum over the entire temperature range of −40°C to +125°C. The ADG859 also has the capability of carrying large amounts of current, typically 300 mA at 5 V operation. These features make the ADG859 an ideal solution for applications that are space-constrained, such as handsets, PDAs, and MP3 players.
Each switch conducts equally well in both directions when on. The device exhibits break-before-make switching action, thereby preventing momentary shorting when switching channels.
The ADG859 is available in a tiny 6-lead SOT-66 package.
ADG859 Maximum Ratings
| Parameter | Rating |
| VDD to GND Analog Inputs1 Digital Inputs1 Peak Current, S or D 5 V Operation 3 V Operation Continuous Current, S or D 5 V Operation 3 V Operation Operating Temperature Range Automotive Storage Temperature Range Junction Temperature SOT-66 Package (4-Layer Board) JA Thermal Impedance Lead-Free Reflow Peak Temperature Time at Peak Temperature |
−0.3 V to +7.0 V
|
ADG859 Features
1.8 V to 5.5 V single supply
Tiny 1.65 mm * 1.65 mm package
Low on resistance: 1.3 at 5 V supply
High current-carrying capability
300 mA continuous current
500 mA peak current at 5 V
Rail-to-rail operation
Typical power consumption: <0.01 W
TTL/CMOS-compatible inputs
Tiny 1.65 mm * 1.65 mm package
Low on resistance: 1.3 at 5 V supply
High current-carrying capability
300 mA continuous current
500 mA peak current at 5 V
Rail-to-rail operation
Typical power consumption: <0.01 W
TTL/CMOS-compatible inputs
ADG859 Typical Application
Cellular phones
PDAs
MP3 players
Battery-powered systems
Audio and video signal routing
Modems
PCMCIA cards
Hard drives
Relay replacement
PDAs
MP3 players
Battery-powered systems
Audio and video signal routing
Modems
PCMCIA cards
Hard drives
Relay replacement

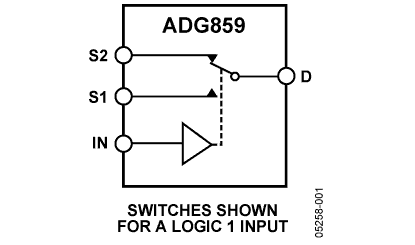

ADG859 Connection Diagram
ADG859
PDF/DataSheet Download
- Datasheet: ADG859
- File Size: 697179 KB
- Manufacturer: AD
- Click here to Download
