Purchase ADS7816, In-stock ADS7816 From SeekIC.
MFG:AD
Part Number: ADS7816
MFG: AD
Description: The ADS7816 is a 12-bit, 200kHz sampling analogto- digital converter. It features low power operation ...
- Table of contents:
ADS7816
-
Suppliers
DataSheet
General Description
ADS7816 General Description
The ADS7816 is a 12-bit, 200kHz sampling analogto- digital converter. It features low power operation with automatic power down, a synchronous serial interface, and a differential input. The reference voltage can be varied from 100mV to 5V, with a corresponding resolution from 24mV to 1.22mV.
Low power, automatic power down, and small size make the ADS7816 ideal for battery operated systems or for systems where a large number of signals must be acquired simultaneously. It is also ideal for remote and/or isolated data acquisition. The ADS7816 is available in an 8-pin plastic mini-DIP, an 8-lead SOIC, or an 8-lead MSOP package.
ADS7816 Maximum Ratings
+VCC .................................................................................................... +6V
Analog Input ...........................................................0.3V to (+VCC + 0.3V)
Logic Input ............................................................. 0.3V to (+VCC + 0.3V)
Case Temperature .........................................................................+100°C
Junction Temperature ................................................................... +150°C
Storage Temperature ....................................................................+125°C
External Reference Voltage .............................................................. +5.5V
Analog Input ...........................................................0.3V to (+VCC + 0.3V)
Logic Input ............................................................. 0.3V to (+VCC + 0.3V)
Case Temperature .........................................................................+100°C
Junction Temperature ................................................................... +150°C
Storage Temperature ....................................................................+125°C
External Reference Voltage .............................................................. +5.5V
ADS7816 Features
200kHz SAMPLING RATE
MICRO POWER: 1.9mW at 200kHz 150mW at 12.5kHz
POWER DOWN: 3A Max
8-PIN MINI-DIP, SOIC, AND MSOP
DIFFERENTIAL INPUT
SERIAL INTERFACE
MICRO POWER: 1.9mW at 200kHz 150mW at 12.5kHz
POWER DOWN: 3A Max
8-PIN MINI-DIP, SOIC, AND MSOP
DIFFERENTIAL INPUT
SERIAL INTERFACE
ADS7816 Typical Application
BATTERY OPERATED SYSTEMS
REMOTE DATA ACQUISITION
ISOLATED DATA ACQUISITION
REMOTE DATA ACQUISITION
ISOLATED DATA ACQUISITION

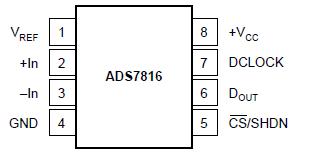

ADS7816 Connection Diagram
ADS7816
