The ADS901 is a high-speed pipelined analog-todigital converter that operates from a +3V power supply. This complete converter includes a wide bandwidth track/hold and a 10-bit quantizer. The full scale input range is set by external references.
The ADS901 employs digital error correction techniques to provide excellent differential linearity for demanding imaging applications. Its low distortion and high SNR give the extra margin needed for telecommunications, video and test instrumentation applications. The ADS901 is available in a 28-lead SSOP package.
ADS901 Maximum Ratings
+VS ..................................................................................................... +6V
Logic VDD ............................................................................................ +6V
Analog Input .............................................................................+VS +0.3V
Logic Input ............................................................................... +VS +0.3V
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .................................................................... +125
Logic VDD ............................................................................................ +6V
Analog Input .............................................................................+VS +0.3V
Logic Input ............................................................................... +VS +0.3V
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .................................................................... +125
ADS901 Features
· LOW POWER: 48mW at +3V
· SUPPLY RANGE: +2.7V to +3.7V
· ADJUSTABLE FULL SCALE RANGE WITH EXTERNAL REFERENCES
· NO MISSING CODES
· WIDEBAND TRACK/HOLD: 350MHz
· POWER DOWN: 15mW
· 28-LEAD SSOP PACKAGE
· SUPPLY RANGE: +2.7V to +3.7V
· ADJUSTABLE FULL SCALE RANGE WITH EXTERNAL REFERENCES
· NO MISSING CODES
· WIDEBAND TRACK/HOLD: 350MHz
· POWER DOWN: 15mW
· 28-LEAD SSOP PACKAGE
ADS901 Typical Application
· BATTERY POWERED EQUIPMENT
· CAMCORDERS
·DIGITAL CAMERAS
· COMPUTER SCANNERS
·COMMUNICATIONS
· CAMCORDERS
·DIGITAL CAMERAS
· COMPUTER SCANNERS
·COMMUNICATIONS

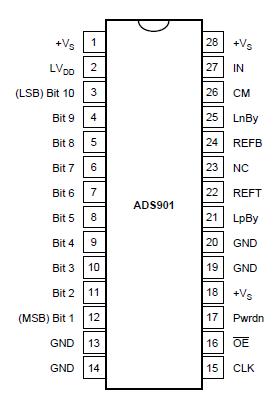

ADS901 Connection Diagram
ADS901
