Part Number: AIC1117



MFG: N/A

Package Cooled: Sot-223

D/C: 09+

Description: The AIC1117 is a low dropout three terminal regulator with 800mA output current capability.The output ...


Urgent Purchase

AIC1117 General Description


The AIC1117 is a low dropout three terminal regulator with 800mA output current capability.The output voltage is adjustable with the use of a resistor divider. For fixed output voltage versions, the output voltage is internally set at 2.85V, 3.3V or 5V. Dropout is guaranteed at a maximum of 1.3V at maximum output current.Its low dropout voltage and fast transient response make it ideal for low voltage microprocessor applications. Internal current and thermal limiting provides protection against any overload condition that would create excessive junction temperatures.

AIC1117 Maximum Ratings

VIN pin to ADJ/ GND pin..........................................................7V
Operating Junction Temperature Range.................0°C ~ 125°C
Storage Temperature Range..............................- 65°C ~ 150°C
Thermal Resistance (Junction to Case) TO-220..................3°C /W
                                                             TO-252 ..............12.5°C /W
                                                             SOT-223 .............15°C /W
Lead Temperature (Soldering) 10 sec. .............................260°C

AIC1117 Features

Dropout Voltage 1.2V at 800mA Output Current.
Fast Transient Response.
Line Regulation typically at 0.015%.
Load Regulation typically at 0.1%.
Internal Thermal and Current Limiting.
Adjustable Output Voltage or Fixed 2.85V, 3.3V,5V.
Standard 3-Pin Power Packages.

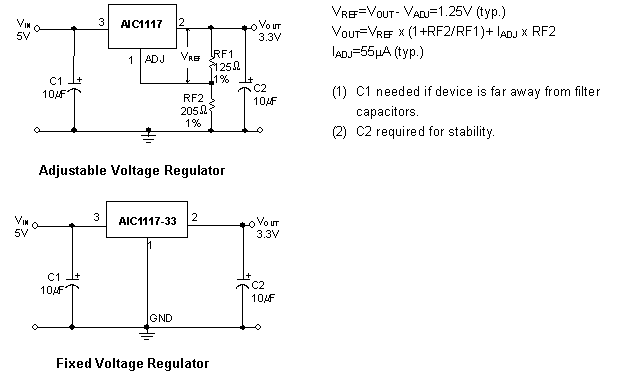

AIC1117 Typical Application

SCSI-2 Active Terminator.
Post Regulator for Switching Supply.
Battery Chargers.
Constant-Current Regulators.
PC Add-On Card.

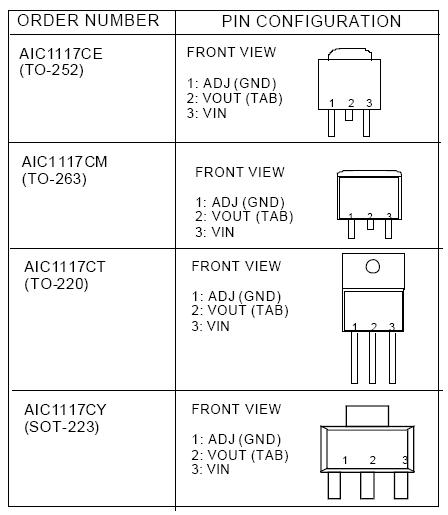

AIC1117 Connection Diagram

AIC1117 Connection Diagram
