General Description
AIC1383B General Description
AIC1383B linear regulator is designed to achieve 3A source and sink current while regulating an output voltage to within 45mV.AIC1383B converts voltage supplies range from 1.6V to 6V into an output voltage that adjusts by two external voltage divider resistors. It provides an excellent voltage source for active termination schemes of high-speed transmission lines as those seen in high-speed memory buses, and it meets the JEDEC SSTL-2 and SSTL-3 specifications for termination of DDR-SRAM.Built-in current limiting in source and sink mode, with thermal shutdown provide maximal protection to the AIC1383B against fault conditions.
AIC1383B Maximum Ratings
Supply Voltage ............................................................................................... -0.4V to 7V
Operating Temperature Range..................................................................... -40°C~85°C
Junction Temperature............................................................................................. 125°C
Storage Temperature Range..................................................................... -65°C ~150°C
Lead Temperature (Solder, 10sec) .........................................................................260°C
Thermal Resistance JC TO-263.................................................................... 3°C /W
TO-252 ................................................................12.5°C /W
SO-8 ......................................................................40°C /W
Thermal Resistance JA TO-263 ...................................................................60°C /W
(Assume no ambient airflow, no heatsink) TO-252 ...........................................100°C /W
SO-8 ..............................................160°C /W
Operating Temperature Range..................................................................... -40°C~85°C
Junction Temperature............................................................................................. 125°C
Storage Temperature Range..................................................................... -65°C ~150°C
Lead Temperature (Solder, 10sec) .........................................................................260°C
Thermal Resistance JC TO-263.................................................................... 3°C /W
TO-252 ................................................................12.5°C /W
SO-8 ......................................................................40°C /W
Thermal Resistance JA TO-263 ...................................................................60°C /W
(Assume no ambient airflow, no heatsink) TO-252 ...........................................100°C /W
SO-8 ..............................................160°C /W
AIC1383B Features
3A Source and Sink Current Ability
Support DDR1 (1.25VTT) and DDR2 (0.9VTT) Requirements
Low Output Voltage Offset, ±20mV
High Accuracy Output Voltage at Full-Load
Adjustable VOUT by External Resistor
Low External Component Count
Current Limit protection
Thermal Protection
SOP-8, TO-252 and TO-263 Packages
Support DDR1 (1.25VTT) and DDR2 (0.9VTT) Requirements
Low Output Voltage Offset, ±20mV
High Accuracy Output Voltage at Full-Load
Adjustable VOUT by External Resistor
Low External Component Count
Current Limit protection
Thermal Protection
SOP-8, TO-252 and TO-263 Packages
AIC1383B Typical Application
Mother Board
Graphic Cards
DDR Termination Voltage Supply
Graphic Cards
DDR Termination Voltage Supply

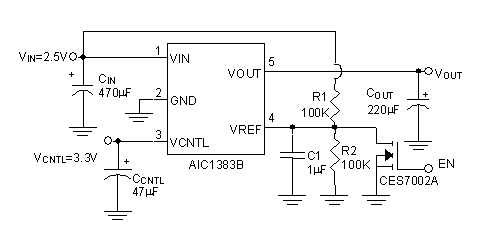

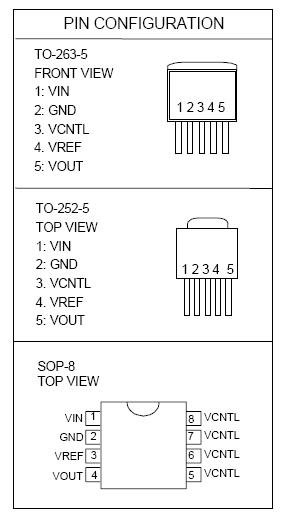

AIC1383B Connection Diagram
AIC1383B
