Purchase AIC1550COTR, In-stock AIC1550COTR From SeekIC.
MFG:AIC D/C:05+
Part Number: AIC1550COTR
MFG: AIC
D/C: 05+
Description: The AIC1550 is a low-noise pulse-width-modulated (PWM) DC-DC step-down converter. It powers logic circ...
- Table of contents:
AIC1550COTR
-
Suppliers
DataSheet
General Description
AIC1550COTR General Description
The AIC1550 is a low-noise pulse-width-modulated (PWM) DC-DC step-down converter. It powers logic circuits in PDAs and small wireless systems such as cellular phones, handy-terminals.
The device features an internal synchronous rectifier for high conversion efficiency. Excellent noise characteristics and fixed-frequency operation provide easy post-filtering. The AIC1550 is ideally suited for Li-ion battery applications. It is also suitable for +3V or +5V fixed input applications. The device can operate in either one of the following four modes.
AIC1550COTR Maximum Ratings
VIN, BP, SHDN, SYNC/MODE, RT to GND .........-0.3 to +7V
BP to VIN ......................................................-0.3 to 0.3V
LX to GND ............................................-0.3 ~ (VIN+0.3V)
FB to GND........................................... -0.3 ~ (VBP+0.3V)
Operating Temperature Range ..................-40°C ~ 85°C
Junction Temperatrue ............................................125°C
Storage Temperature Range ..................- 65°C ~ 150°C
Lead Temperature (Soldering. 10 sec) ..................260°C
BP to VIN ......................................................-0.3 to 0.3V
LX to GND ............................................-0.3 ~ (VIN+0.3V)
FB to GND........................................... -0.3 ~ (VBP+0.3V)
Operating Temperature Range ..................-40°C ~ 85°C
Junction Temperatrue ............................................125°C
Storage Temperature Range ..................- 65°C ~ 150°C
Lead Temperature (Soldering. 10 sec) ..................260°C
AIC1550COTR Features
` 95% Efficiency or up
` 800mA Guaranteed Output Current.
` Adjustable Output Voltage from 0.75V to VIN of a range from +2.5V to 6.5V.
` Very Low Quiescent Current: 35A (Typ.).
` Fixed- 500KHz or Adjustable Frequency Synchronous PWM Operation.
` Synchronizable external Switching Frequency up to 1MHz.
` Accurate Reference: 0.75V (±2%).
` 100% Duty Cycle in Dropout.
` Low Profile 8-Pin MSOP Package.
` 800mA Guaranteed Output Current.
` Adjustable Output Voltage from 0.75V to VIN of a range from +2.5V to 6.5V.
` Very Low Quiescent Current: 35A (Typ.).
` Fixed- 500KHz or Adjustable Frequency Synchronous PWM Operation.
` Synchronizable external Switching Frequency up to 1MHz.
` Accurate Reference: 0.75V (±2%).
` 100% Duty Cycle in Dropout.
` Low Profile 8-Pin MSOP Package.
AIC1550COTR Typical Application
· PDAs.
· Digital Still Cameras.
· Handy-Terminals.
· Cellular Phones.
· CPU I/O Supplies.
· Cordless Phones.
· Notebook Chipset Supplies.
· Battery-Operated Devices (4 NiMH/ NiCd or 1 Li-ion Cells).
· Digital Still Cameras.
· Handy-Terminals.
· Cellular Phones.
· CPU I/O Supplies.
· Cordless Phones.
· Notebook Chipset Supplies.
· Battery-Operated Devices (4 NiMH/ NiCd or 1 Li-ion Cells).

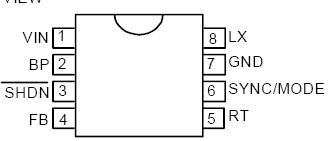

AIC1550COTR Connection Diagram
