Purchase AIC1596, In-stock AIC1596 From SeekIC.
Part Number: AIC1596
Description: The AIC1596 series are step-down monolithic PWM regulators delivering 3A at fixed voltages of 2.5V , 3...
- Table of contents:
AIC1596
-
Suppliers
DataSheet
General Description
AIC1596 General Description
The AIC1596 series are step-down monolithic PWM regulators delivering 3A at fixed voltages of 2.5V , 3.3V, 5.0V , 12V and using a external divider to adjust output voltage from 1.25V to 30V with excellent line and load regulation.Switching frequency up to 150KHz/300KHz are achievable thus allowing smaller sized filter components.Internal current limit and thermal shutdown circuits provide protection from overloads.
It also provides output overvoltage and short protection under fault conditions.The internal precious reference combined with voltage feedback loop provides optimum output voltage accuracy and fast load transient response.Packages available are in standard TO220-5 for standard assembly and TO263-5 for SMD.
AIC1596 Maximum Ratings
Supply Voltage................................................................................................36V
FB, SHDN Pin Input Voltage.............................................................................25V
Operating Temperature Range............................................................0°C ~ 70°C
Storage Temperature Range..........................................................65°C ~ 150°C
FB, SHDN Pin Input Voltage.............................................................................25V
Operating Temperature Range............................................................0°C ~ 70°C
Storage Temperature Range..........................................................65°C ~ 150°C
AIC1596 Features
Operating Input Voltage From 4.5V to 36V
2.5V, 3.3V, 5V , 12V and Adjustable Output Version
Adjustable Version Output Voltage Range , 1.25V
to 30V ± 4% max Over Line and Load Regulation
Available in TO220-5 and TO263-5 Package
Requires Only 4 External Components.
150KHz/300KHz Fixed Constant Frequency
Low Power Standby Mode, IQ Typically 80A
TTL Shutdown Capability.
Output Overvoltage Protection
Current Limit and Thermal Shutdown Protection.
3A Guaranteed Output Current
2.5V, 3.3V, 5V , 12V and Adjustable Output Version
Adjustable Version Output Voltage Range , 1.25V
to 30V ± 4% max Over Line and Load Regulation
Available in TO220-5 and TO263-5 Package
Requires Only 4 External Components.
150KHz/300KHz Fixed Constant Frequency
Low Power Standby Mode, IQ Typically 80A
TTL Shutdown Capability.
Output Overvoltage Protection
Current Limit and Thermal Shutdown Protection.
3A Guaranteed Output Current
AIC1596 Typical Application
Simple High Efficiency Step-down regulator
On-Card Switching regulators
Fixed Voltage power supply for LCD Monitor
On-Card Switching regulators
Fixed Voltage power supply for LCD Monitor

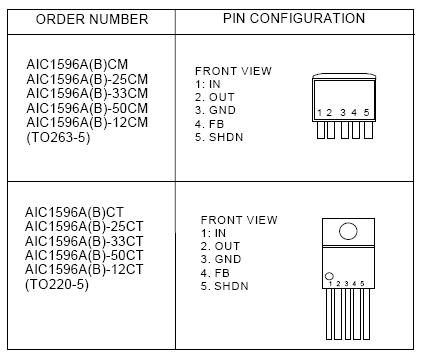

AIC1596 Connection Diagram
AIC1596
PDF/DataSheet Download
- Datasheet: AIC1596
- File Size: 62762 KB
- Manufacturer: AIC [Analog Intergrations Corporation]
- Click here to Download
