General Description
AIC1722A General Description
The AIC1722A is a 3-pin low dropout linear regulator. The superior characteristics of the AIC1722A include zero base current loss,very low dropout voltage, and 2% accuracy output voltage. Typical ground current remains approximately 55µA, from no load to maximum loading conditions. Dropout voltage at 300mA output current is exceptionally low.
Output current limiting and thermal limiting are built in to provide maximal protection to the AIC1722A against fault conditions.
The AIC1722A comes in the popular 3-pin SOT-89, TO-92 and SOT-23 packages.
AIC1722A Maximum Ratings
Input Supply Voltage ........................ -0.3~8V
Operating Temperature Range ...................-40°C~ 85°C
Junction Temperature ........................125°C
Storage Temperature Range ....................-65°C~150°C
Lead Temperature (Soldering. 10sec) ................ 260°C
Power Dissipation SOT-89 Package.....0.5W
TO-92 Package............................0.5W
SOT-23 Package........................... 0.5W
Operating Temperature Range ...................-40°C~ 85°C
Junction Temperature ........................125°C
Storage Temperature Range ....................-65°C~150°C
Lead Temperature (Soldering. 10sec) ................ 260°C
Power Dissipation SOT-89 Package.....0.5W
TO-92 Package............................0.5W
SOT-23 Package........................... 0.5W
AIC1722A Features
Low Dropout Voltage of 470mV at 300mA Output Current (3.0V Output Version).
Guaranteed 300mA Output Current.
Maximum Input Voltage is 8V Low Ground Current at 55µA.
2% Accuracy Output Voltage of 1.8V/ 2.0V /2.5V /2.7V/ 3.0V/ 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V.
Needs only 1µF for Stability.
Current and Thermal Limiting.
Guaranteed 300mA Output Current.
Maximum Input Voltage is 8V Low Ground Current at 55µA.
2% Accuracy Output Voltage of 1.8V/ 2.0V /2.5V /2.7V/ 3.0V/ 3.3V/ 3.5V/ 3.7V/ 3.8V/ 5.0V/ 5.2V.
Needs only 1µF for Stability.
Current and Thermal Limiting.

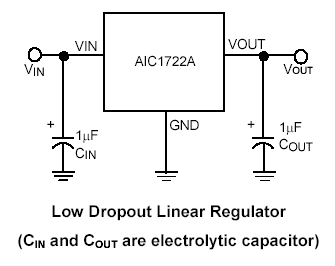

AIC1722A Typical Application
Voltage Regulator for CD-ROM Drivers.
Voltage Regulator for LAN Cards.
Voltage Regulator for Microprocessor.
Wireless Communication Systems.
Battery Powered Systems.
Voltage Regulator for LAN Cards.
Voltage Regulator for Microprocessor.
Wireless Communication Systems.
Battery Powered Systems.
