Part Number: AIC1733
Description: AIC1733 is a 500mA low noise, low dropout linear regulator, and is housed in small SOT-23-5 package. T...
- Table of contents:
AIC1733
-
Suppliers
DataSheet
General Description
AIC1733 General Description
AIC1733 is a 500mA low noise, low dropout linear regulator, and is housed in small SOT-23-5 package. The device is in the "ON" state when the SHDN pin is set to logic high level. An internal P-MOSFET pass transistor is used to achieve 650mV low dropout voltage at 500mA load current. It offers high precision output voltage of ±2%. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications. The internal reverse bias protection eliminates the requirement for a reverse voltage protection diode. The high ripple rejection and low noise of AIC1733 provide enhanced performance for critical applications. The noise bypass pin can be connected an external capacitor to reduce the output noise level.
AIC1733 Maximum Ratings
Supply Voltage ..............................................................................................12V
Shutdown Terminal Voltage ..........................................................................12V
Noise Bypass Terminal Voltage ......................................................................5V
Operating Temperature Range ........................................................-40~85
Maximum Junction Temperature 125°C
Storage Temperature Range .........................................................-65~150
Lead Temperature (Soldering, 10 sec) 260°C
Thermal Resistance (Junction to Case) SOT-23-5 .............................130°C /W
Thermal Resistance Junction to Ambient SOT-23-5 ..........................220°C /W
Shutdown Terminal Voltage ..........................................................................12V
Noise Bypass Terminal Voltage ......................................................................5V
Operating Temperature Range ........................................................-40~85
Maximum Junction Temperature 125°C
Storage Temperature Range .........................................................-65~150
Lead Temperature (Soldering, 10 sec) 260°C
Thermal Resistance (Junction to Case) SOT-23-5 .............................130°C /W
Thermal Resistance Junction to Ambient SOT-23-5 ..........................220°C /W
AIC1733 Features
·Active Low Shutdown Control.
·Very Low Quiescent Current.
·Very Low Dropout Voltage of 650mV at 500mA Output Current (3.0V Output Version)
·1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V Output Voltage.
·Short Circuit and Thermal Protection.
·±2% Output Tolerance.
·Miniature Package: SOT-23-5
·Very Low Quiescent Current.
·Very Low Dropout Voltage of 650mV at 500mA Output Current (3.0V Output Version)
·1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V Output Voltage.
·Short Circuit and Thermal Protection.
·±2% Output Tolerance.
·Miniature Package: SOT-23-5

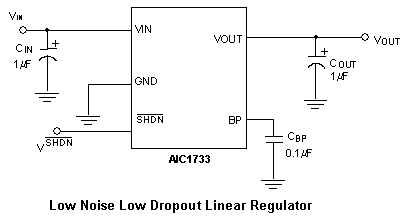

AIC1733 Typical Application
·PDA
·DSC
·Notebook
·Pagers
·Personal Communication Equipment
·Cordless Telephones
·Portable Instrumentation
·Portable Consumer Equipment
·Battery Powered Systems
·DSC
·Notebook
·Pagers
·Personal Communication Equipment
·Cordless Telephones
·Portable Instrumentation
·Portable Consumer Equipment
·Battery Powered Systems
