General Description
AIC1783A General Description
The AIC1783A fast charge controller IC is designed for intelligent charging of NiMH or NiCd batteries without the risk of overcharge. −V detection (-0.25%) and 0detection (peak voltage timer) are the primary methods employed by the AIC1783A to terminate fast charge. The fast charge can also be cut off by maximum battery voltage along with the safety timer to prevent charging under fault conditions of the charging system or the battery itself. V The safety timer period is adjustable for flexible usage that AIC1783A could be applied in the wide range of battery capacity. Test mode is provided for charger manufactures to dramatically reduce production test time.
AIC1783A Maximum Ratings
Supply Voltage .....................................................................................5.5V
DC Voltage Applied on any pin ...............................................................5.5V
Sink current of ICON pin, LED pin ................................................ 20mA
Operating Temperature Range ...................................................... -40~ 85
Storage Temperature Range ..................................................... -65~ 150
DC Voltage Applied on any pin ...............................................................5.5V
Sink current of ICON pin, LED pin ................................................ 20mA
Operating Temperature Range ...................................................... -40~ 85
Storage Temperature Range ..................................................... -65~ 150
AIC1783A Features
`Fast Charge Control of NiMH/NiCd Batteries.
`Fast Charge Termination by: , Safety Timer, Maximum Voltage. −V0V
`Protection against Battery Voltage Fault.
`Pulsed Trickle Charge Mode.
`Quick and Easy Testing for Production.
`8-pin DIP or SO Packages.
`Fast Charge Termination by: , Safety Timer, Maximum Voltage. −V0V
`Protection against Battery Voltage Fault.
`Pulsed Trickle Charge Mode.
`Quick and Easy Testing for Production.
`8-pin DIP or SO Packages.
AIC1783A Typical Application
·Mobile Phones.
·Notebook and Laptop Personal Computers.
·Portable Power Tools and Toys.
·Portable Communication Equipment.
·Portable Video & Stereo Equipment.
·Notebook and Laptop Personal Computers.
·Portable Power Tools and Toys.
·Portable Communication Equipment.
·Portable Video & Stereo Equipment.

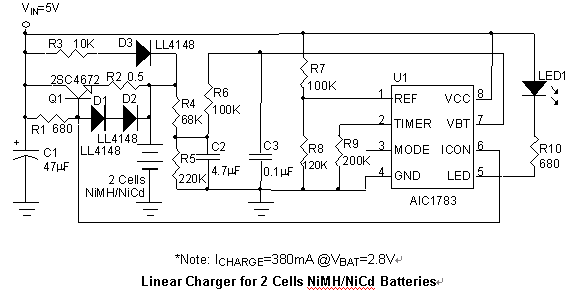

AIC1783A Connection Diagram
AIC1783A
