AMS1084

Features:

· Three Terminal Adjustable or Fixed 1.5V, 2.5V, 2.85V, 3.0V, 3.3V, 3.5V and 5.0V
· Output Current of 5A
· Operates Down to 1V Dropout
· Line Regulation: 0.015%
· Load Regulation: 0.1%
· TO-220 and TO-263 packages available




Application

· High Efficiency Linear Regulators
· Post Regulators for Switching Supplies
· Microprocessor Supply
· Battery Chargers
· Constant Current Regulators
· Notebook/Personal Computer Supplies
· Portable Instrumentation

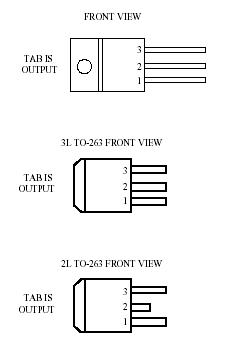

Pinout






Specifications

Power Dissipation Internally limited
Input Voltage15V
Operating Junction Temperature Range
Control Section0°C to 125°C
Power Transistor0°C to 150°C
Storage temperature - 65°C to +150°C
Soldering information
Lead Temperature (10 sec) 300°C
Thermal Resistance
TO-220 package _JA= 50°C/W
TO-263 package _JA= 30°C/W *
* With package soldering to 0.5in2 copper area over backside ground plane or internal power plane _JA can vary
from 20°C/W to >40°C/W depending on mounting technique.

Description

AMS1084 series of adjustable and fixed voltage regulators are designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry. The AMS1084 devices are pin compatible with older three-terminal regulators and are offered in 3 lead TO-220, 3 lead TO-263 (Plastic DD) and TO-252 (DPAK) packages.

The The AMS1084 series of adjustable and fixed voltage regulators are designed to provide 5A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.5V at maximum output current, decreasing at lower load currents.

On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress under overload conditions on both the regulator and power source circuitry.

The AMS1084 devices are pin compatible with older three-terminal regulators and are offered in 3 lead TO-220 package and 3 and 2 lead TO-263 (Plastic DD).
