Part Number: AN79M00









Description: The AN79M00 and the AN79M00F series are 3-pin fixed negative output voltage regulators. Stabilized fix...


Urgent Purchase

AN79M00 General Description


The AN79M00 and the AN79M00F series are 3-pin fixed negative output voltage regulators. Stabilized fixed output voltage is obtained from unstable DC input voltage without using any external components. 12 types of output voltage are available ; 5V, 5.2V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V and 24V. They can be used widely in power circuits with current capacitance up to 500mA.

AN79M00 Maximum Ratings

Parameter
Symbol
Rating
Unit
Input voltage
VI
35 *1
V
40 *2
V
Power dissipation AN79M00 Series
PD
15 *3
W
AN79M00F Series
10.25 *3
Operating ambient temperature
Topr
30 to +80
Storage temperature
Tstg
−55 to +150
*1 AN79M05/F, AN79M52/F, AN79M06/F, AN79M07/F, AN79M08/F, AN79M09/F, AN79M10/F, AN79M12/F, AN79M15/F, AN79M18/F
*2 AN79M20/F, AN79M24/F
*3 Follow the derating curve. When Tj exceeds 150°C, the internal circuit cuts off the output.

AN79M00 Features

• No external components
• Output voltage : 5V, 5.2V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24V
• Short-circuit current limiting built-in
• Thermal overload protection built-in
• Output transistor safe area compensation

AN79M00 datasheet

AN79M00
PDF/DataSheet Download

  • Datasheet: AN79M00
  • File Size: 80985 KB
  • Manufacturer: PANASONIC [Panasonic Semiconductor]
  • Click here to Download

Find AN79M00 Suppliers

  • ·an7
  •
  •
  • 219153 KB
  • an7 Datasheet Download
  • ·an70
  •
  •
  • 30347 KB
  • an70 Datasheet Download
  • ·AN701
  • VISAY [Vishay Siliconix]
  • Designing High-Frequency DC-to-DC Converters With the Si9114A Switchmode Controller
  • 1140187 KB
  • AN701 Datasheet Download
  • ·AN7017
  • PANASONIC [Panasonic Semiconductor]
  • FM/TV Front-end ICs for 1.5V Headphone Stereo, Radio Cassette Recorder
  • 65724 KB
  • AN7017 Datasheet Download
  • ·AN7017S
  • PANASONIC [Panasonic Semiconductor]
  • FM/TV Front-end ICs for 1.5V Headphone Stereo, Radio Cassette Recorder
  • 65724 KB
  • AN7017S Datasheet Download
  • ·AN7017SB
  • PANASONIC [Panasonic Semiconductor]
  • FM/TV Front-end ICs for 1.5V Headphone Stereo, Radio Cassette Recorder
  • 65724 KB
  • AN7017SB Datasheet Download
  • ·AN703
  • ON SEMICONDUCTOR
  • Designing Digitally-Controlled Power Supplies
  • 695225 KB
  • AN703 Datasheet Download
  • ·AN706
  • PANASONIC [Panasonic Semiconductor]
  • High Voltage Input Amplifier Circuit for Hi-Fi Power Amplifier
  • 29118 KB
  • AN706 Datasheet Download

Related Part Number

AN79M00 Relative Products

  • AN79LxxM

    AN79LxxM

  • AN79Lxx

    AN79Lxx

  • AN79L24ME1

    AN79L24ME1

    VOLT REG NEG 24V 100MA SMD TO243

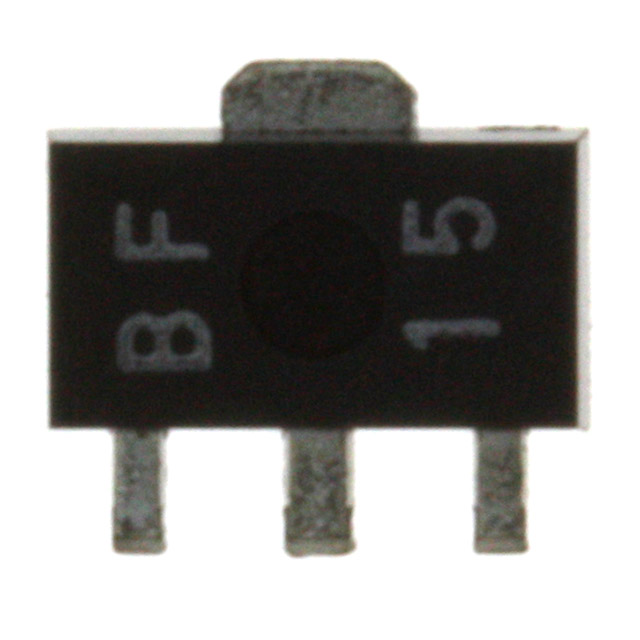

  • AN79L24M
