Part Number: AO4422



MFG: ALPHA

Package Cooled: SOP8



Description: The AO4422 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable fo...


Urgent Purchase

AO4422 General Description


The AO4422 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. This device is suitable for use as a load switch or in PWM applications. The source leads are separated to allow a Kelvin connection to the source, which may be used to bypass the source inductance.

AO4422 Maximum Ratings

Paramete Symbol Maximum Units
Drain-Source Voltage VDS 30 V
Gate-Source Voltage VGS ±20 V
Continuous Drain Current A TA=25°C ID 11 A
TA=70°C 9.3
Pulsed Drain Current B IDM 50
Power Dissipation TA=25°C PD 3 W
TA=70°C 2.1
Junction and Storage Temperature Range TJ, TSTG -55 to 150 °C

AO4422 Features

VDS (V) = 30V
ID = 11A
RDS(ON) < 15m (VGS = 10V)
RDS(ON) < 24m (VGS = 4.5V)

AO4422 datasheet

AO4422
PDF/DataSheet Download

  • Datasheet: AO4422
  • File Size: 233117 KB
  • Manufacturer: AOSMD [Alpha & Omega Semiconductors]
  • Click here to Download

Find AO4422 Suppliers

  • ·AO4400
  • AOSMD [Alpha & Omega Semiconductors]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 367760 KB
  • AO4400 Datasheet Download
  • ·AO4401
  • AOSMD [Alpha & Omega Semiconductors]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 367760 KB
  • AO4401 Datasheet Download
  • ·AO4402
  • ETC [ETC]
  • N-Channel Enhancement Mode Field Effect Transistor
  • 262197 KB
  • AO4402 Datasheet Download
  • ·AO4403
  • AOSMD [Alpha & Omega Semiconductors]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 454394 KB
  • AO4403 Datasheet Download
  • ·AO4404
  • AOSMD [Alpha & Omega Semiconductors]
  • N-Channel Enhancement Mode Field Effect Transistor
  • 601454 KB
  • AO4404 Datasheet Download
  • ·AO4404A
  • ALPHA
  • N-Channel Enhancement Mode Field Effect Transistor
  • 427610 KB
  • AO4404A Datasheet Download
  • ·AO4405
  • ALPHA [Alpha Industries]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 116907 KB
  • AO4405 Datasheet Download
  • ·AO4405L
  • ALPHA [Alpha Industries]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 116907 KB
  • AO4405L Datasheet Download

Related Part Number

AO4422 Relative Products

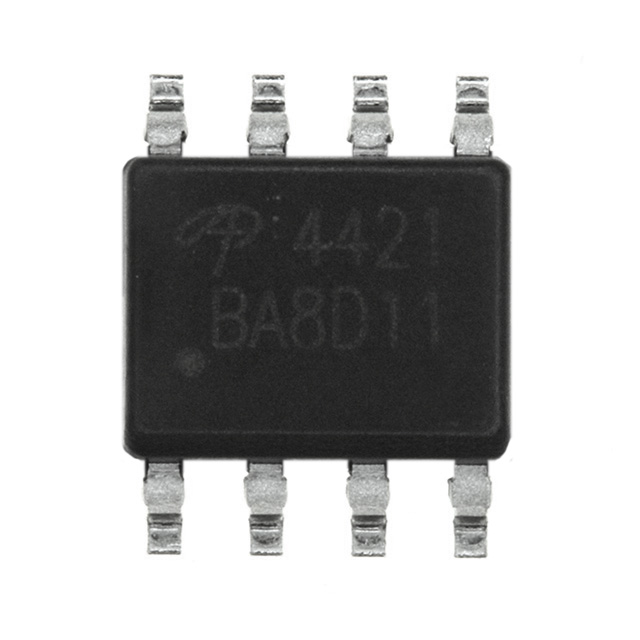

  • AO4421
