Purchase AO4478L, In-stock AO4478L From SeekIC.

MFG:AOS  Package Cooled:SOP-8  D/C:06+

AO4478L Product Image

AO4 Series Datasheet download

Five Points

Part Number: AO4478L



MFG: AOS

Package Cooled: SOP-8

D/C: 06+

Description: The AO4478L uses advanced trench technology to provide excellent RDS(ON), low gate charge. This device is suitable for ...


Urgent Purchase

AO4478L General Description


The AO4478L uses advanced trench technology to provide excellent RDS(ON), low gate charge. This device is suitable for use as general puspose, PWM and a load switch applications.
-RoHS Compliant
-Halogen Free

AO4478L Maximum Ratings

Parameter
   Symbol
Maximum
Units
Drain-Source Voltage   VDS
30
V
Gate-Source Voltage   VGS
±25
V
Continuous Drain
Current		 TA=25 ID
9.0
A
TA=70
7.0
Pulsed Drain Current C   IDM
60
Avalanche Current C   Iar
17
Repetitive avalanche energy L=0.1mHC   Ear
14
mJ
Power DissipationB TA=25 PD
3.1
W
TA=70
2.0
Junction and Storage Temperature Range   TJ, TSTG
-55 to 150

AO4478L Features

VDS (V) = 30V
ID = 9A (VGS = 10V)
RDS(ON) <19m (VGS = 10V)
RDS(ON) <26m (VGS = 4.5V)

                         100% UIS Tested!
                         100% Rg Tested!

AO4478L datasheet

AO4400
PDF/DataSheet Download

  • Datasheet: AO4400
  • File Size: 367760 KB
  • Manufacturer: AOSMD [Alpha & Omega Semiconductors]
  • Click here to Download

Find AO4478L Suppliers

  • ·AO4401
  • AOSMD [Alpha & Omega Semiconductors]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 367760 KB
  • AO4401 Datasheet Download
  • ·AO4402
  • ETC [ETC]
  • N-Channel Enhancement Mode Field Effect Transistor
  • 262197 KB
  • AO4402 Datasheet Download
  • ·AO4403
  • AOSMD [Alpha & Omega Semiconductors]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 454394 KB
  • AO4403 Datasheet Download
  • ·AO4404
  • AOSMD [Alpha & Omega Semiconductors]
  • N-Channel Enhancement Mode Field Effect Transistor
  • 601454 KB
  • AO4404 Datasheet Download
  • ·AO4404A
  • ALPHA
  • N-Channel Enhancement Mode Field Effect Transistor
  • 427610 KB
  • AO4404A Datasheet Download
  • ·AO4405
  • ALPHA [Alpha Industries]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 116907 KB
  • AO4405 Datasheet Download
  • ·AO4405L
  • ALPHA [Alpha Industries]
  • P-Channel Enhancement Mode Field Effect Transistor
  • 116907 KB
  • AO4405L Datasheet Download
  • ·AO4406
  • ALPHA [Alpha Industries]
  • N CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
  • 297412 KB
  • AO4406 Datasheet Download

Related Part Number

AO4478L Relative Products

  • AO4476

    AO4476

  • AO4474

    AO4474

    MOSFET N-CH 30V 13.4A 8-SOIC

  • AO4468

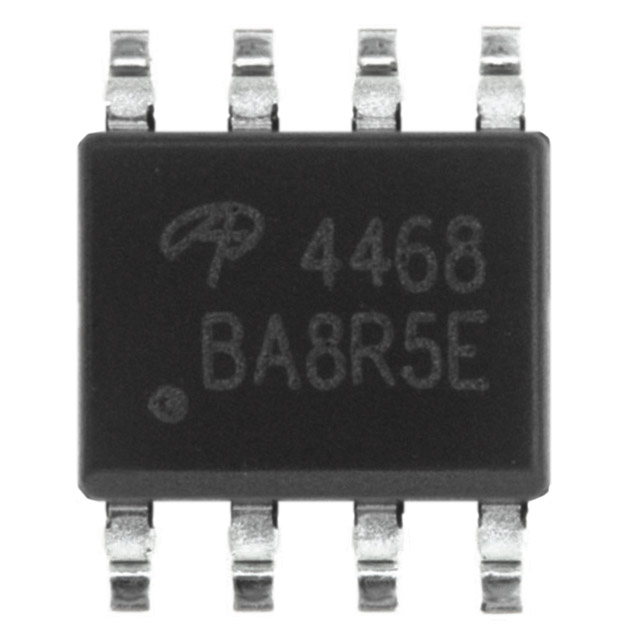

    AO4468

    MOSFET N-CH 30V 11.6A 8-SOIC

  • AO4466

    AO4466

    The AO4466 is designed as one kind of N-channel enhancement mode field effect transistor that can be used in as a load switch or in PWM applications. Also this device is a green product ordering option and electrically identical. Features of the AO4466 are:(...

  • AO4459

    AO4459

    MOSFET P-CH -30V -6.5A 8-SOIC

  • AO4456

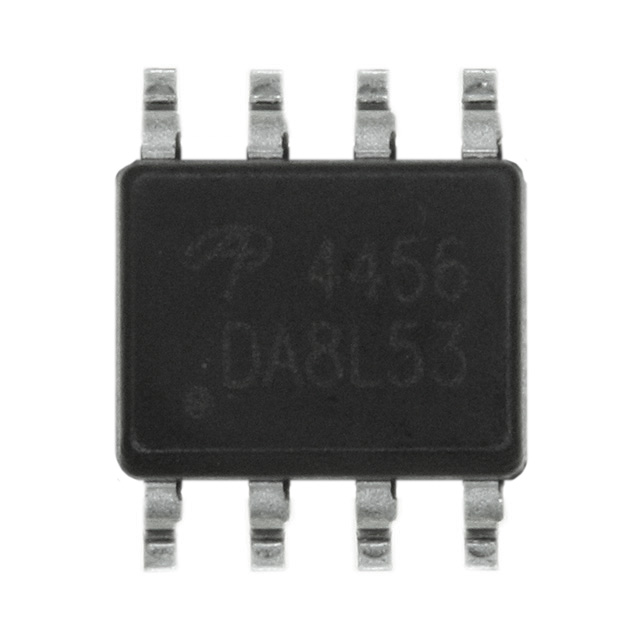

    AO4456
