APL5332

Features: • LDO with Source and Sink capabilities• Single Input Voltage• Input Voltage Range from 2.5V to 5.0V• Use One Pin to Select Fixed Output Voltage• Use One Pin to Choose Output Voltage by External Resistors• Output Voltage Accuracy : ±2%• Current L...

product image

APL5332 Picture
See larger image
SeekIC No. : 004286678 Detail

APL5332: Features: • LDO with Source and Sink capabilities• Single Input Voltage• Input Voltage Range from 2.5V to 5.0V• Use One Pin to Select Fixed Output Voltage• Use One Pin ...

APL5332 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
APL5332
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• LDO with Source and Sink capabilities
• Single Input Voltage
• Input Voltage Range from 2.5V to 5.0V
• Use One Pin to Select Fixed Output Voltage
• Use One Pin to Choose Output Voltage by External Resistors
• Output Voltage Accuracy : ±2%
• Current Limit Protection
• Thermal Shutdown Protection
• Fast Transient Response
• Stability with low-ESR capacitors
• TO-252-5, SOP-8 and SOP-8-P Packages




Application

• Desktop computers

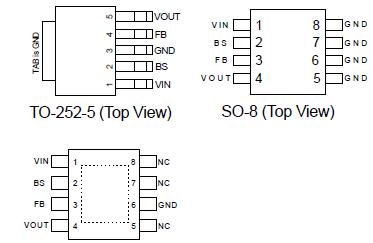

Pinout






Specifications

Symbol
Parameter
Rating
Unit
VIN
 VIN Supply Voltage, V IN to GND
-0.2 ~ 5.5
V
 BS, FB to GND
-0.2 ~ V IN
V
VOUT
 VOUT Output Voltage, VOUT to GND
-0.2 ~ VIN
V
PD
 Power Dissipation
Internally Limited
W
TJ
 Junction Temperature
150
°C
TSTG
 Storage Temperature
-65 ~ 150
°C
TSDR
 Soldering Temperature, 10 Seconds
300
°C
VESD
 Minimum ESD Rating (Human Body Mode)
±3
kV





Description

The APL5332 is a precise CMOS LDO with source sink and output selection functions. The APL5332 offers 2% output accuracy. The APL5332 integrates with two power mosfets to source and sink current as well as current and thermal limit into a single chip. The output voltage can be 1.225V or 1.45V by BS pin selection, and also can be adjusted by an external resistor divider connected to FB pin.

The APL5332 also works with low-ESR output capacitors, reducing the amount of board space necessary for power applications.

The APL5332 key features include current-limit, thermal shutdown, and fast transient response. A compact package TO-252-5 for power consumption purpose, and SOP-8 and SOP-8-P for space saving purpose.
