Part Number: APT5010LFLL



MFG: APT

Package Cooled: TO-264 [L]

D/C: `06+(pb-free)

Description: Power MOS 7TM is a new generation of low loss, high voltage, N-Channel enhancement mode power MOSFETS. Both ...


Urgent Purchase

APT5010LFLL General Description


Power MOS 7TM is a new generation of low loss, high voltage, N-Channel enhancement mode power MOSFETS. Both conduction and switching losses are addressed with Power MOS 7TM by significantly lowering RDS(ON) and Qg. Power MOS 7TM combines lower conduction and switching losses along with exceptionally fast switching speeds inherent with APT's patented metal gate structure.

APT5010LFLL Maximum Ratings

Symbol Parameter APT5010 UNIT
VDSS Drain-Source Voltage 500 Volts
ID Continuous Drain Current @ TC = 25°C 46 Amps
IDM Pulsed Drain Current 184
VGS Gate-Source Voltage Continuous ±30 Volts
VGSM Gate-Source Voltage Transient ±40
PD Total Power Dissipation @ TC = 25°C 500 Watts
Linear Derating Factor 4.0 W/°C
TJ,TSTG Operating and Storage Junction Temperature Range -55 to 150 °C
TL Lead Temperature: 0.063" from Case for 10 Sec 300
IAR Avalanche Current (Repetitive and Non-Repetitive) 46 Amps
EAR Repetitive Avalanche Energy 50 mJ
EAS Single Pulse Avalanche Energy 1800

APT5010LFLL datasheet

APT5010LFLL
PDF/DataSheet Download

  • Datasheet: APT5010LFLL
  • File Size: 65369 KB
  • Manufacturer: ADPOW [Advanced Power Technology]
  • Click here to Download

Find APT5010LFLL Suppliers

  • ·APT1001
  • ADPOW [Advanced Power Technology]
  • Power MOS VI is a new generation of low gate charge, high voltage N-Channel enhancement mode power MOSFETs
  • 36626 KB
  • APT1001 Datasheet Download
  • ·APT1001R1AN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | 9.5A I(D) | TO-3
  • 214276 KB
  • APT1001R1AN Datasheet Download
  • ·APT1001R1AVR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs
  • 69982 KB
  • APT1001R1AVR Datasheet Download
  • ·APT1001R1BN
  • ADPOW [Advanced Power Technology]
  • N-CHANNEL ENHANCEMENT MODE HIGH VOLTAGE POWER MOSFETS
  • 53353 KB
  • APT1001R1BN Datasheet Download
  • ·APT1001R1BVFR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs.
  • 72323 KB
  • APT1001R1BVFR Datasheet Download
  • ·APT1001R1DN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | CHIP
  • 395046 KB
  • APT1001R1DN Datasheet Download
  • ·APT1001R1HN
  •
  • TRANSISTOR | MOSFET | N-CHANNEL | 1KV V(BR)DSS | 9.5A I(D) | TO-258ISO
  • 227320 KB
  • APT1001R1HN Datasheet Download
  • ·APT1001R1HVR
  • ADPOW [Advanced Power Technology]
  • Power MOS V is a new generation of high voltage N-Channel enhancement mode power MOSFETs.
  • 68546 KB
  • APT1001R1HVR Datasheet Download

Related Part Number

APT5010LFLL Relative Products

  • APT5010JVRU3

    APT5010JVRU3

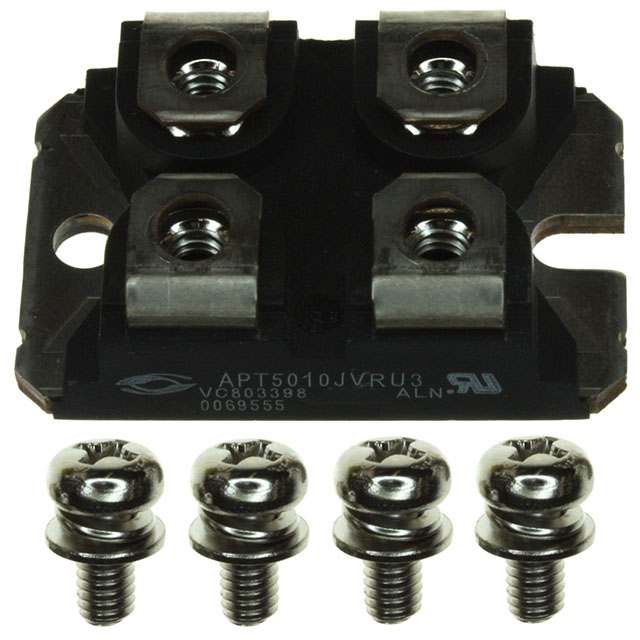

    Power MOS V® APT5010JVRU3 is a new generation of high voltage N-Channel enhancement mode power MOSFETs. This new technology minimizes the JFET effect, increases packing density and reduces the on-resistance. Power MOS V® also achieves faster switchin...
