Part Number: AS1431DR4DBVB
Description: The AS1431 is a three-terminal adjustable shunt regulator providing a highly accurate 0.4% bandgap reference. The adjus...
- Table of contents:
AS1431DR4DBVB
-
Suppliers
DataSheet
General Description
AS1431DR4DBVB General Description
The AS1431 is a three-terminal adjustable shunt regulator providing a highly accurate 0.4% bandgap reference. The adjustable shunt regulator is ideal for a wide variety of linear applications that can be implemented using external components to obtain adjustable currents and voltages.In the standard shunt configuration, the combination of low temperature coefficient (TC), sharp turn-on characteristics, low output impedance and programmable output voltage make this precision reference a perfect zener diode replacement.The AS1431 is characterized to operate over the full automotive tem-perature range of Ð55 to 125¡C and is now available in the SOT-23 (5L) package.
AS1431DR4DBVB Maximum Ratings
| Parameter | Symbol | Rating | Units |
| Cathode-Anode Reverse Breakdown | VKA | 37 | V |
| Anode-Cathode Forward Current | IAK | 1 | A |
| Operating Cathode Current | IREF | 250 | mA |
| Reference Input Current | IREF | 10 | mA |
| Continuous Power Dissipation at 25°C TO-92 8L SOIC SOT-89 SOT-23/5L |
PD | 775 750 1000 200 |
mW mW mW mW |
| Junction Temperature | TJ | 150 | °C |
| Storage Temperature | TSTG | -65 to 150 | °C |
| Lead Temperature Soldering 10 Seconds | TL | 300 | °C |
AS1431DR4DBVB Features
Temperature-compensated: 30 ppm/¡C
Trimmed 0.4% bandgap reference
Internal amplifier with 150 mA capability
Temperature range: Extended to Ð55 to125¡C
Low frequency dynamic output impedance: < 150 m½
Low output noise
Robust ESD protection
Trimmed 0.4% bandgap reference
Internal amplifier with 150 mA capability
Temperature range: Extended to Ð55 to125¡C
Low frequency dynamic output impedance: < 150 m½
Low output noise
Robust ESD protection

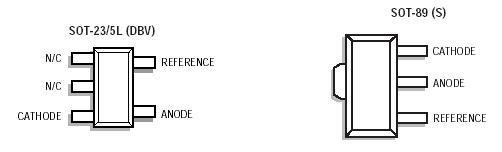

AS1431DR4DBVB Connection Diagram
AS1431DR4DBVB
PDF/DataSheet Download
- Datasheet: AS1431DR4DBVB
- File Size: 83434 KB
- Manufacturer: ETC [ETC]
- Click here to Download
