General Description
AT006N3-93 General Description
The AT006N3-93GHz GaAs FET IC non-reflective bridged "T"attenuator provides up to 30dB of "nonreflective" attenuation. The control voltage requirements are 0 to -5 V.
This attenuator has two independent voltage controls, which must be adjusted in a prescribed manner to obtain the desired attenuation under non-reflective conditions. Refer to the Application Notes section, "Dual Voltage Con-trolled VVA."
Applications for these fast attenuators are AGC circuitsand variable level control in various military and telecom-munications systems.
AT006N3-93 Maximum Ratings
|
Characteristic |
Value |
| RF Input Power (RF In) |
10 mW > 500 MHz 4 mW @ 50 MHz |
| Control Voltage (VC) |
+0.2 V, -10 V |
| Operating Temperature (TOP) |
-40°C to +90°C |
| Storage Temperature (TST) |
-65°C to +150°C |
| Thermal Resistance (JC) |
25°C/W |
AT006N3-93 Features
Dual Control Voltages
Low Insertion Loss
Broadband DC8 GHz
Small Low Cost "Chip on Board" Package
Low Insertion Loss
Broadband DC8 GHz
Small Low Cost "Chip on Board" Package

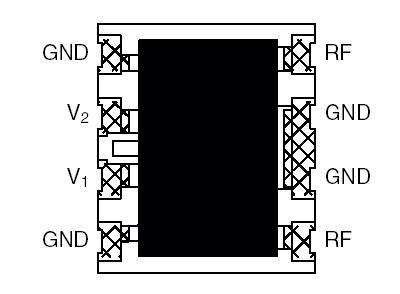

AT006N3-93 Connection Diagram
AT006N3-93
PDF/DataSheet Download
- Datasheet: AT006N3-93
- File Size: 50794 KB
- Manufacturer: ALPHA [Alpha Industries]
- Click here to Download
