General Description
ATAR510 General Description
The ATAR510 is a member of Atmel's family of 4-bit single-chip microcontrollers. It contains ROM, RAM, up to 34 digital I/O pins, up to 10 maskable external interrupt sources, 4 maskable internal interrupts, a watchdog timer, interval timer, 2 x 8-bit mul-tifunction timer/counter module, and a versatile software configurable on-chip system clock module.MARC4 4-bit Universal MicrocontrollerATAR510
ATAR510 Maximum Ratings
|
Parameters |
Symbol |
Value |
Unit |
| Supply voltage |
VDD |
-0.3 to +7 |
V |
| Input voltage (on any pin) |
VIN |
VSS-0.3 VIN VDD +0.3 |
V |
| Output short circuit duration |
tshort |
indefinite |
s |
| Operating temperature range |
Tamb |
-40 to +85°C |
°C |
| Storage temperature range |
Tstg |
-65 to +150 |
°C |
| Thermal resistance (SSO44) |
RthJA |
110 |
K/W |
| Soldering temperature (t 10 s) |
Tsld |
260 |
°C |
ATAR510 Features
•Programmable System Clock with Prescaler and Five Different Clock Sources
4-MHz Crystal Oscillator
32-kHz Crystal Oscillator
RC-oscillator Fully Integrated
RC-oscillator with External Resistor Adjustment
External Clock Input
•Wide Supply-voltage Range (2.2 V to 6.2 V)
•Very Low Halt Current (< 1 µA)
•4-Kbyte ROM, 256 * 4-bit RAM
•8 Hard and Software Interrupt Priority Levels
•Up to 10 External and 4 Internal Interrupts, Bit Wise Maskable with Programmable Priority Level
•Up to 34 I/O Lines Including 8 High Drive I/O-lines (20 mA, VDD = 5 V)
•I/O Ports Bit Wise Configurable with Combined Interrupt Handling (for Serial I/O Applications)
•2 * 8-bit Multifunction Timer/Counters
•Coded Reset and Watchdog Timer (Mask Option)
•Power-on Reset and "Brown Out" Function
•Various Power-down Modes
•Efficient, Hardware-controlled Interrupt Handling
•High Level Programming Language qFORTH
•Comprehensive Library of Useful Routines
•Windows® 95/Windows NT® Based Development Tools
4-MHz Crystal Oscillator
32-kHz Crystal Oscillator
RC-oscillator Fully Integrated
RC-oscillator with External Resistor Adjustment
External Clock Input
•Wide Supply-voltage Range (2.2 V to 6.2 V)
•Very Low Halt Current (< 1 µA)
•4-Kbyte ROM, 256 * 4-bit RAM
•8 Hard and Software Interrupt Priority Levels
•Up to 10 External and 4 Internal Interrupts, Bit Wise Maskable with Programmable Priority Level
•Up to 34 I/O Lines Including 8 High Drive I/O-lines (20 mA, VDD = 5 V)
•I/O Ports Bit Wise Configurable with Combined Interrupt Handling (for Serial I/O Applications)
•2 * 8-bit Multifunction Timer/Counters
•Coded Reset and Watchdog Timer (Mask Option)
•Power-on Reset and "Brown Out" Function
•Various Power-down Modes
•Efficient, Hardware-controlled Interrupt Handling
•High Level Programming Language qFORTH
•Comprehensive Library of Useful Routines
•Windows® 95/Windows NT® Based Development Tools

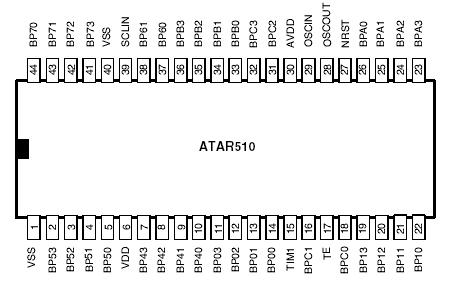

ATAR510 Connection Diagram
ATAR510
PDF/DataSheet Download
- Datasheet: ATAR510
- File Size: 1046567 KB
- Manufacturer: ATMEL [ATMEL Corporation]
- Click here to Download
