AU9510F

Features: • Support the Universal Serial Bus Specification, version 1.1. • Based on ISO7816 implementation • Support PC Smart Card industry standard PC/SC 1.0 • Support Microsoft Smart Card for Windows • Meet Microsoft WHQL USB Smart Card Reader requirements •I...

product image

AU9510F Picture
See larger image
SeekIC No. : 004291689 Detail

AU9510F: Features: • Support the Universal Serial Bus Specification, version 1.1. • Based on ISO7816 implementation • Support PC Smart Card industry standard PC/SC 1.0 • Support Micr...

AU9510F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AU9510F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Support the Universal Serial Bus Specification, version 1.1.
• Based on ISO7816 implementation
• Support PC Smart Card industry standard PC/SC 1.0
• Support Microsoft Smart Card for Windows
• Meet Microsoft WHQL USB Smart Card Reader requirements
• Include WDM driver to work on Windows 98 and Windows 2000
• Support dual slots for higher security application
• Support T0, T1 protocol, I2C memory card, SLE4418, SLE4428, SLE4432, SLE4442, AT88SC1608 and AT45D041 card.
• Dedicated hardware block implementation for IC and memory card protocols for highest performance
• Implemented as an USB full speed device with bulk transfer endpoint
• Built-in 3.3V regulator for single 5V operation
• Built-in PLL for USB and Smart Card clocks requirement
• Support EEPROM for USB descriptors customization, including VID/PID
• Available in 48-LQFP Package
• Based on USB-CCID class, short APDU level
• Compatible with Microsoft USB-CCID driver
• Support 3V/5V card


Pinout

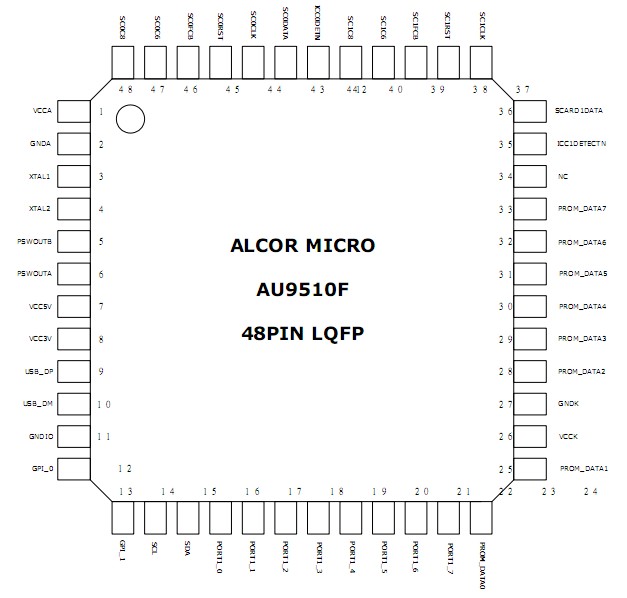

Connection Diagram


Description

AU9510F is a highly integrated single chip,  USB Smart Card reader controller. Highly integration enables the lowest BOM cost of USB Smart Card reader. The AU9510 F supports multiple international standards including ISO7816 for IC card standard, PC/SC 1.0 for windows smart card standard, Microsoft WHQL, and USB-IF CCID standard. The application of AU9510F can be generally applied to Smart Card read/write terminal device, such as Electronic Cash, Credit and Debit, GSM, loyalty system, and access information...etc.
