Features:

· Generates one or two 106.25 MHz clocks from a 17 MHz crystal
· Less than 60ps one sigma jitter
· Less than ±200ps absolute jitter
· Output skew less than ±100ps on two channel version (-20)
· Rise/fall times less than 4ns driving 15pF
· On-chip loop filter components
· 3.0V-5.5V supply range
· 8-pin, 150-mil SOIC package


Application

·  Specifically designed to support the high-speed clocking requirements of fibre channel systems


Pinout

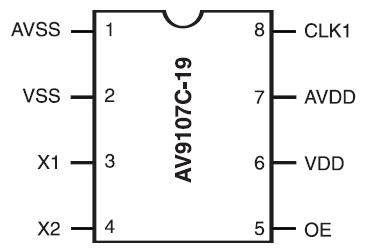

Connection Diagram


Specifications

AVDD, VDD referenced to GND . . . . . . . . . .  . . .  . . .  . .  . .  . . . . . 7V
Operating temperature under bias. . . . . . . . . . . . . . . . 0°C to +70°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . .  . -65°C to +150°C
Voltage on I/O pins referenced to GND. . . . . GND -0.5V to VDD +0.5V
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .  . . 0.5 Watts
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device.
This is a stress rating only and functional operation of the device at these or any other conditions above
those indicated in the operational sections of the specifications is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect product reliability.


Description

The AV9107C-19 and AV9107C-20 are high-speed clock generators designed to support fibre channel system requirements. The AV9107C-19 generates a single copy of the 106.25 MHz from a 17 MHz crystal. The AV9107C-20 provides a second copy of the 106.25 MHz clock with output skew less than ±100ps.

An exact frequency multiplying ratio ensures better than ±100 ppm frequency accuracy using a standard AT crystal with external load capacitors (typically 33pF±5% for an 18pF load crystal). Achieving ±100 ppm over four years requires the crystal to have a ±20 ppm initial accuracy, ±30 ppm tempera-ture and ±5 ppm/year aging coefficients.
