Part Number: AV9110
Package Cooled: SOP
Description: The AV9110 generates user specified clock frequencies using an externally generated input reference, s...
- Table of contents:
AV9110
-
Suppliers
DataSheet
General Description
AV9110 General Description
The AV9110 generates user specified clock frequencies using an externally generated input reference, such as 14.318 MHz or 10.00 MHz crystal connected between pins 1 and 14. Alternately, a TTL input reference clock signal can be used. The output frequency is determined by a 24-bit digital word entered through the serial port. The serial port enables the user to change the output frequency on-the-fly.
The clock outputs utilize CMOS level output buffers that operate up to 130 MHz.
AV9110 Maximum Ratings
Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 V
Voltage on I/O pins referenced to GND . . . . . . GND 0.5 V to VDD +0.5 V
Operating Temperature under bias . . . . . . . . . . . . . . . . . . 0°C to +70°C
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 0.8 Watts
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are
stress specifications only and functional operation of the device at these or any other conditions above those listed in the
operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended
periods may affect product reliability.
Voltage on I/O pins referenced to GND . . . . . . GND 0.5 V to VDD +0.5 V
Operating Temperature under bias . . . . . . . . . . . . . . . . . . 0°C to +70°C
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 0.8 Watts
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are
stress specifications only and functional operation of the device at these or any other conditions above those listed in the
operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended
periods may affect product reliability.
AV9110 Features
• Complete user programmability of output frequency
through serial input data port
• On-chip Phase-Locked Loop for clock generation
• Generates accurate frequencies up to 130 MHz
• Tristate CMOS outputs
• 5 volt power supply
• Low power CMOS technology
• 14-pin DIP or 150-mil SOIC
• Very low jitter
• Wide operating range VCO
through serial input data port
• On-chip Phase-Locked Loop for clock generation
• Generates accurate frequencies up to 130 MHz
• Tristate CMOS outputs
• 5 volt power supply
• Low power CMOS technology
• 14-pin DIP or 150-mil SOIC
• Very low jitter
• Wide operating range VCO
AV9110 Typical Application
Graphics: The AV9110 generates low jitter, high speed pixel (or dot) clocks. It can be used to replace multiple expensive high speed crystal oscillators. The flexibility of this device allows it to generate nonstandard graphics clocks, allowing the user to program frequencies on-the-fly.

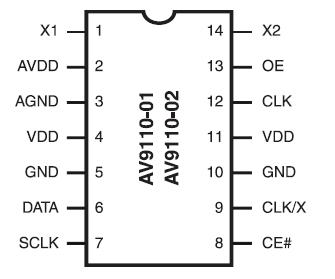

AV9110 Connection Diagram
AV9110
PDF/DataSheet Download
- Datasheet: AV9110
- File Size: 274428 KB
- Manufacturer: ICST [Integrated Circuit Systems]
- Click here to Download
