AV9154A-60 General Description
AV9154A-60 Maximum Ratings
VDD referenced to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . 7V
Operating temperature under bias. . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to +150°C
Voltage on I/O pins referenced to GND. . . . . . . . . . . GND -0.5V to VDD +0.5V
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 Watts
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any other conditions above those indicated in the operational sections
of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
AV9154A-60 Features
• Compatible with 286, 386, and 486 CPUs
• Up to 66.6 MHz (-60) CPU clocks
• All loop filter components internal
• 3.3V and 5V operation
• 16-pin 150-mil SOIC
• Power-down control of CPU clock
AV9154A-60 Typical Application

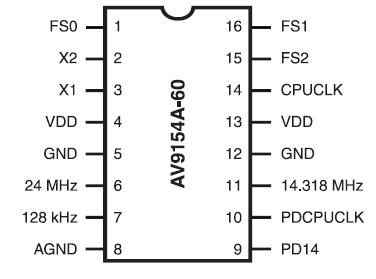

AV9154A-60 Connection Diagram
