AV9155C

Features: • Compatible with 286, 386, and 486 CPUs• Supports turbo modes• Generates communications clock, keyboard clock, floppy disk clock, system reference clock, bus clock and CPU clock• Output enable tristates outputs• Up to 100 MHz at 5V or 3.3V• 20-pin DIP...

product image

AV9155C Picture
See larger image
SeekIC No. : 004291805 Detail

AV9155C: Features: • Compatible with 286, 386, and 486 CPUs• Supports turbo modes• Generates communications clock, keyboard clock, floppy disk clock, system reference clock, bus clock and C...

AV9155C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
AV9155C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Compatible with 286, 386, and 486 CPUs
• Supports turbo modes
• Generates communications clock, keyboard clock,
   floppy disk clock, system reference clock, bus clock
   and CPU clock
• Output enable tristates outputs
• Up to 100 MHz at 5V or 3.3V
• 20-pin DIP or SOIC
• All loop filter components internal
• Skew-controlled 2X and 1X CPU clocks
• Power-down option


Pinout

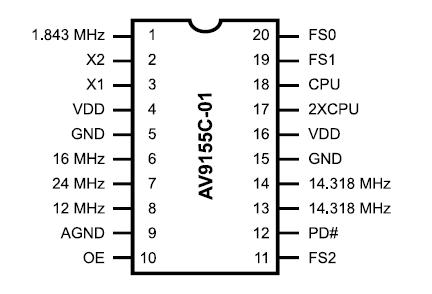

Connection Diagram


Specifications

VDD referenced to GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7V
Voltage on I/O pins referenced to GND. . . . . . . . . . . GND -0.5V to VDD +0.5V
Operating temperature under bias. . . . . . . . . . . . . . . . . . . . . . 0°C to +70°C
Power dissipation . . . . . . . . . . . . . . . . . . . . . . . .  . . . .. . . . . . . . . . 0.5 Watts
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . -40°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating
only and functional operation of the device at these or any other conditions above those indicated in the operational sections
of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The AV9155C is a low cost frequency generator designed specifically for desktop and notebook PC applications with either 3.3V or 5.0V power supply voltage. Its CPU clocks provide all necessary CPU frequencies for 286, 386 and 486 systems, including support for the latest speeds of processors. The device uses a 14.318 MHz crystal to generate the CPU and all peripheral clocks for integrated desktop motherboards.

The dual 14.318 MHz clock outputs allows one output for the system and one to be the input to an ICS graphics frequency generator such as the AV9194.

The CPU clock offers the unique feature of smooth, glitchfree transitions from one frequency to the next, making this ideal device to use whenever slowing the CPU speed. The AV9155C makes a gradual transition between frequencies, so that it obeys the Intel cycle-to-cycle timing specification for 486 systems. The simultaneous 2X and 1X CPU clocks offer controlled skew to within 1.5ns (max) of each other.
