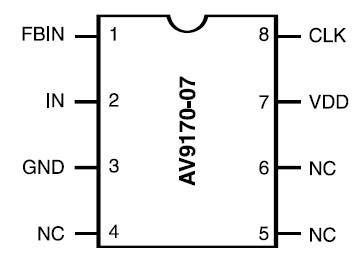

AV9170-07

The AV9170-07 is a PLL (Phase-Locked Loop) based frequency multiplier designed for use on Media Vision sound boards. This clock output is 4X the input clock, it is restricted to the output divider and the VCO range. The output frequency range is 1 to 12.5MHz, with an input range of 0.64 to 0.768MHz for IN and 0.256 to 3.072MHz for FBIN. By integrating the sensitive analog sections of the PLL, such as the phase comparator, loop filter and VCO, jitter is minimized and external part count is reduced.

The AV9170-07 is a derivative of the AV9170 available from Integrated Circuit Systems, Inc. For additional information on the AV9170-07, please refer to the AV9170 Application Note.
