AWS5506

Features:

· Low Insertion Loss (0.4 dB @ 0.9 GHz)
· Complementary Positive Control Voltages (0/+3V to 0/+5V)
· Positive Voltage Supply (+3 to +5 V)
· Low DC Power Consumption
· Ultra Miniature 6 Lead SOT-6 Package


Application

Typical applications include: selection of synthesizers, filters, amplifiers in dual mode, and dual band handsets.

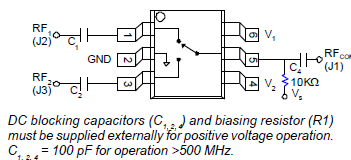

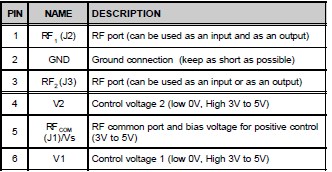

Pinout




Specifications

PARAMETER	MIN	MAX	UNIT
RF Input Power > 500 MHz, 0/+7 V Control	-	2	W
Control Voltage	-0.2	+8	V
Operating Temperature	-40	+125	°C
Storage Temperature	-50	+150	°C
JC	-	25	° C/W

Description

The AWS5506 is a Single Pole Double Throw GaAs MMIC switch assembled in a SOT-6 plastic package.The AWS5506 is designed for analog and digital application that require for insertion loss, small size,and low cost. State selection is achieved with a complimentary positive voltage (requires positive bias Vs, and blocking caps) or negative voltage (no Vs or blocking caps required).
