AWS5522

Features:

• Low Insertion Loss: 0.5 dB at 2 GHz
• High Isolation: > 25 dB
• Low Harmonic Levels: < -65 dBc
• Low Control Voltage Operation: to +2.5 V
• Low Profile Surface Mount Package


Application

• GSM Wireless Handsets and Front-end Modules
• CDMA Wireless Handsets and Front-end Modules

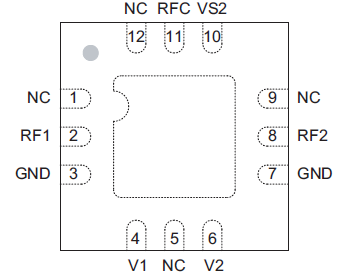

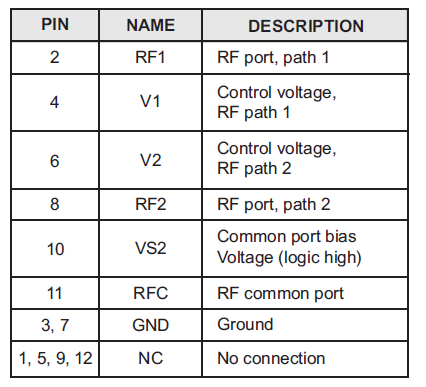

Pinout




Specifications

PARAMETER	MIN	MAX	UNIT	COMMENTS
Common Port Bias Voltage (VS)	-0.2	+8.0	V	at VS1 or VS2 (1)
Control Voltages (V1, V2)	-0.2	+8.0	V
RF Input Power (PIN)	-	10	W	at RF1, RF2 and RFC
Storage Temperature (2)	-65	+150	°C

Description

The AWS5522 is a single pole, double throw (SPDT) RF switch developed to meet the stringent requirements of GSM and CDMA systems.Manufactured in ANADIGICS's state-of-the-art pHEMT process, the device uses patent-pending circuit topologies to provide the low insertion loss, high port-to-port isolation and high linearity needed to enhance the performance of wireless handset radios.The AWS5522 is offered both as an MMIC die and in a 12-lead 3mm x 3mm MLF package.
