Part Number: Am27X2048
Description: The Am27X2048 is a factory programmed and tested OTP EPROM. It is programmed after packaging prior to ...
- Table of contents:
Am27X2048
-
Suppliers
DataSheet
General Description
Am27X2048 General Description
The Am27X2048 is a factory programmed and tested OTP EPROM. It is programmed after packaging prior to final test. Every device is rigorously tested under AC and DC operating conditions to your stable code. It is organized as 128 Kwords by 16 bits per word and is available in plastic dual in-line packages (PDIP), as well as plastic leaded chip carrier (PLCC) packages.
ExpressROM devices provide a board-ready memory solution for medium to high volume codes with short leadtimes. This offers manufacturers a cost-effective and flexible alternative to OTP EPROMs and mask programmed ROMs.
Data can be accessed as fast as 70 ns, allowing high-performance microprocessors to operate with reduced WAIT states. The device offers separate Output Enable (OE#) and Chip Enable (CE#) controls, thus eliminating bus contention in a multiple bus microprocessor system.
AMD's CMOS process technology provides high speed, low power, and high noise immunity. Typical power consumption is only 125 mW in active mode, and 100 W in standby mode.
Am27X2048 Maximum Ratings
Storage Temperature
OTP Products. . . . . . . . . . . . . . . . 65°C to +125°C
Ambient Temperature
with Power Applied. . . . . . . . . . . .55°C to +125°C
Voltage with Respect to VSS
All pins except VCC . . . . . . . . . 0.6 V to VCC + 0.6 V
VCC (Note 1). . . . . . . . . . . . . . . . . . . .0.6 V to 7.0 V
Note:
1. Minimum DC voltage on input or I/O pins 0.5 V. During voltage transitions, the input may overshoot VSS to 2.0 V
for periods of up to 20 ns. Maximum DC voltage on input and I/O pins is VCC + 5 V. During voltage transitions, input
and I/O pins may overshoot to VCC + 2.0 V for periods up to 20 ns.
Am27X2048 Features
` As an OTP EPROM alternative:
- Factory optimized programming
- Fully tested and guaranteed
`As a Mask ROM alternative:
- Shorter leadtime
- Lower volume per code
` Fast access time
- 70 ns
` Single +5 V power supply
`Compatible with JEDEC-approved EPROM pinout
`±10% power supply tolerance
` High noise immunity
`Low power dissipation
- 100 A maximum CMOS standby current
` Available in Plastic Dual-In-line Package (PDIP) and Plastic Leaded Chip Carrier (PLCC)
` Latch-up protected to 100 mA from 1 V to VCC + 1 V
`Versatile features for simple interfacing
- Both CMOS and TTL input/output compatibility
- Two line control functions
- Factory optimized programming
- Fully tested and guaranteed
`As a Mask ROM alternative:
- Shorter leadtime
- Lower volume per code
` Fast access time
- 70 ns
` Single +5 V power supply
`Compatible with JEDEC-approved EPROM pinout
`±10% power supply tolerance
` High noise immunity
`Low power dissipation
- 100 A maximum CMOS standby current
` Available in Plastic Dual-In-line Package (PDIP) and Plastic Leaded Chip Carrier (PLCC)
` Latch-up protected to 100 mA from 1 V to VCC + 1 V
`Versatile features for simple interfacing
- Both CMOS and TTL input/output compatibility
- Two line control functions

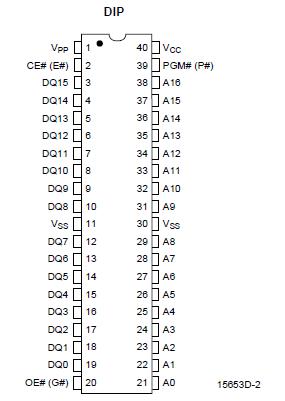

Am27X2048 Connection Diagram
