Am79M576A
-
Suppliers
DataSheet
General Description
Am79M576A Maximum Ratings
Storage temperature ..................... ........55°C to +150°C
Ambient temperature, operating ............... 0°C to +70°C
VCC with respect to AGND......................... 0.4 V to +7.0 V
VEE with respect to AGND ........................ +0.4 V to 7.0 V
VBAT with respect to AGND ........................ +0.4 V to 70 V
BGND with respect to AGND/DGND............. +1.0 V to 3.0 V
A(TIP) or B(RING) to BGND:Continuous ..........70 V to +2 V
10 ms (f = 0.1 Hz) ......................................... 70 V to +5 V
1 s (f = 0.1 Hz) .......................................... 90 V to +10 V
250 ns (f = 0.1 Hz) .................................... 120 V to +15 V
Current from A(TIP) or B(RING).............................. ±150 mA
Voltage on VCCRING ................................. ...0.3 V to +7 V
Current through relay drivers orinternaldrivercatchdiodes..60 mA
Voltage on ring-trip inputs DA and DB ................VBAT to 0 V
Current into ring-trip inputs..................................... ±10 mA
Peak current into regulator switch (L pin)..................150 mA
Switcher transient peak off voltage on L pin ..............+1.0 V
C3C1, E0, E1, CHCLK to AGND.........0.4 V to VCC + 0.4 V
Maximum power dissipation (see note)................TA = 70°C
In 32-pin PLCC package...............................................1.2 W
Ambient temperature, operating ............... 0°C to +70°C
VCC with respect to AGND......................... 0.4 V to +7.0 V
VEE with respect to AGND ........................ +0.4 V to 7.0 V
VBAT with respect to AGND ........................ +0.4 V to 70 V
BGND with respect to AGND/DGND............. +1.0 V to 3.0 V
A(TIP) or B(RING) to BGND:Continuous ..........70 V to +2 V
10 ms (f = 0.1 Hz) ......................................... 70 V to +5 V
1 s (f = 0.1 Hz) .......................................... 90 V to +10 V
250 ns (f = 0.1 Hz) .................................... 120 V to +15 V
Current from A(TIP) or B(RING).............................. ±150 mA
Voltage on VCCRING ................................. ...0.3 V to +7 V
Current through relay drivers orinternaldrivercatchdiodes..60 mA
Voltage on ring-trip inputs DA and DB ................VBAT to 0 V
Current into ring-trip inputs..................................... ±10 mA
Peak current into regulator switch (L pin)..................150 mA
Switcher transient peak off voltage on L pin ..............+1.0 V
C3C1, E0, E1, CHCLK to AGND.........0.4 V to VCC + 0.4 V
Maximum power dissipation (see note)................TA = 70°C
In 32-pin PLCC package...............................................1.2 W

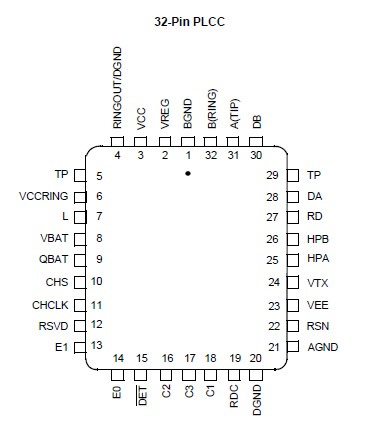

Am79M576A Connection Diagram
